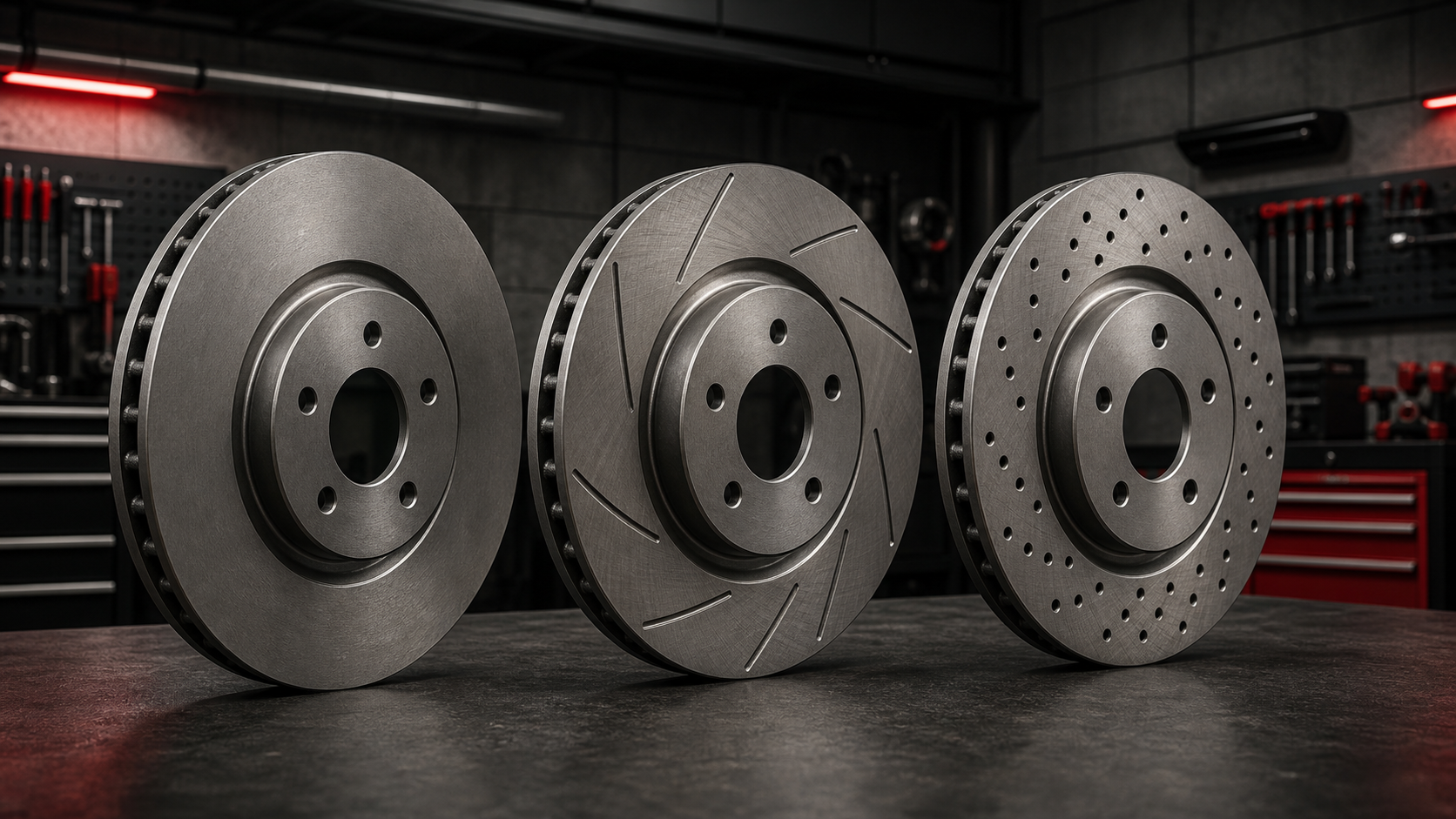

Plain, slotted and drilled rotors can all work well when their metallurgy, vane design, dimensions and application are correct. Face treatment is only one part of rotor performance. Plain rotors maximize uninterrupted friction area and avoid hole-related stress concentration. Slots help refresh the pad surface and provide evacuation paths. Drilled holes can reduce mass and offer wet or appearance benefits, but severe heat cycling can increase cracking risk around the holes.
Key takeaways
- Choose exact fitment, quality casting and correct thermal capacity before face pattern.
- Plain rotors are effective for most street use and many competition applications.
- Slotted rotors can manage pad deposits and debris but may add wear or noise.
- Drilled rotors require careful inspection, especially under repeated high heat.
What the rotor must do
The rotor provides friction surfaces, absorbs braking energy as heat and transfers that heat to surrounding air. Its diameter affects brake torque, while thickness, mass and vane architecture influence capacity and cooling. The hub or hat must locate accurately and transmit load.
A pattern cannot compensate for insufficient thickness, poor material, incorrect vane direction or damaged mounting surfaces.
Plain rotors
A plain rotor has a continuous swept face. It offers maximum surface continuity and is economical to manufacture and service. With a suitable pad and cooling system, plain rotors can handle demanding use. Their simple appearance should not be mistaken for low performance.
They are a strong default for daily driving, towing within vehicle limits and many track setups where durability and crack resistance are priorities.
Slotted rotors
Slots pass under the pad, helping remove gases, water, debris and unstable friction material. They can maintain a fresh pad face and provide a visual wear reference when designed for that purpose. Slot number, depth, direction and edge treatment are engineered features.
Slots can increase pad wear and create audible contact. Aggressive designs can reduce friction area or concentrate heat. Follow the rotor manufacturer's directional installation markings.
Drilled rotors
Cross-drilled holes historically helped vent gases from older pad materials and can provide water evacuation and reduced mass. Modern pads may not require gas venting in the same way. Holes remove material and create local stress concentration, especially when poorly drilled or finished.
High-quality drilled rotors may use cast-in or carefully machined and chamfered holes with application-specific design, but they still require regular crack inspection. Some manufacturers prohibit them for particular competition use.
| Factor | Plain | Slotted | Drilled |
|---|---|---|---|
| Continuous face | Highest | Interrupted by slots | Interrupted by holes |
| Pad cleaning | Normal pad action | Strong surface refresh | Some evacuation effect |
| Pad wear | Often lowest | Can increase | Product-dependent |
| Crack concern | Usually at heat checks or edges | Inspect slot ends | Inspect around holes carefully |
| Typical choice | Street and broad performance | Performance and track where approved | Street/show or approved applications |
Vented vs. solid construction
Vented rotors contain internal vanes that pump cooling air from the center toward the outside. Straight, pillar and directional curved vanes behave differently. A rotor's left/right installation may be determined by internal vane direction rather than slot appearance.
Solid rotors are used where heat load and packaging permit. Never replace a vented application with an unapproved solid rotor.
One-piece vs. two-piece
A one-piece rotor combines friction ring and hub section in one casting. A two-piece assembly uses a separate ring and hat, potentially controlling unsprung mass and thermal expansion while allowing ring replacement. Hardware design, float and service procedures are critical. Do not reuse bobbins or fasteners unless approved.
Heat checking vs. cracks
Fine surface heat checks can develop under hard use, while cracks extending to an edge, hole, slot or mounting feature can indicate unsafe damage. Acceptance criteria are manufacturer-specific. When uncertain, stop using the vehicle and have the rotor professionally inspected.
Pad deposits, vibration and runout
Pedal pulsation is often called a warped rotor, but thickness variation, uneven friction transfer, hub corrosion, improper fastener torque and runout can create the sensation. Measure the assembly instead of diagnosing by feel alone.
Clean hub faces, correct installation and approved bedding help establish uniform operation.
How to choose the right rotor
- Confirm exact vehicle, axle, brake package and rotor dimensions.
- Define street, towing or closed-course duty.
- Choose adequate diameter, thickness, mass and vane design.
- Match the rotor to the intended pad compound.
- Select a face pattern approved for the use.
- Check wheel, caliper, hub and parking-brake compatibility.
- Follow directional, cleaning, torque and bedding procedures.
- Inspect thickness, runout and cracks at appropriate intervals.
Common mistakes
- Choosing by appearance alone.
- Installing directional rotors on the wrong side.
- Using drilled rotors for severe track use without approval.
- Pairing an incompatible pad and rotor.
- Ignoring hub rust and runout.
- Applying lubricant to friction surfaces or incorrect fastener locations.
- Holding very hot brakes stationary after severe use.
- Continuing to use a rotor with cracks or below-minimum thickness.
Browse confirmed FSP brake-rotor products and verify axle, brake package, dimensions and manufacturer part number before ordering.
Frequently asked questions
Do slotted rotors stop shorter?
Slots may support pad behavior, but tires, pad friction, temperature and ABS largely determine stopping distance.
Are drilled rotors unsafe?
Quality application-approved products can be suitable, but hole areas require inspection and may be inappropriate for severe heat cycling.
Do plain rotors overheat faster?
Not inherently. Mass, vanes, airflow, pad and duty matter more than lack of face pattern.
Can rotors be resurfaced?
Only when the vehicle, rotor and pad manufacturers permit it and finished thickness and surface remain within specification.
Safety note: Brake rotors are safety-critical. Replace damaged or below-limit components, use exact-fit parts and have uncertain wear or cracking professionally evaluated.
