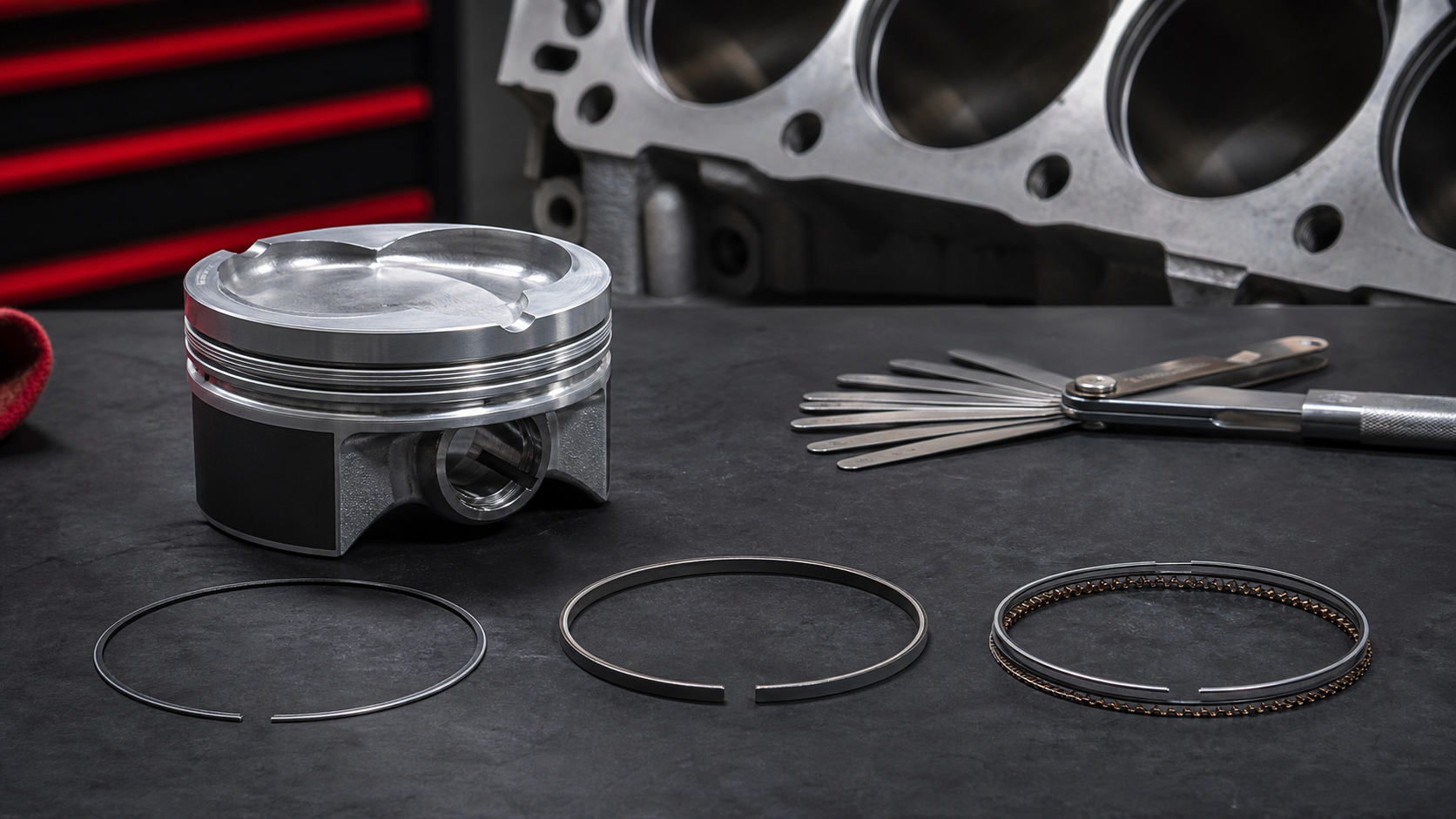

A typical piston ring pack includes a top compression ring, a second ring and an oil-control assembly. Together they help seal combustion pressure, regulate the oil film on the cylinder wall and transfer heat from the piston into the bore. The correct ring set is determined by piston-groove dimensions, bore size and material, surface finish, fuel, power level and intended use. Rings cannot be selected safely from engine displacement alone.
Key takeaways
- Match the exact piston groove width, radial depth, bore and manufacturer part number.
- Top and second rings perform different jobs and may have a required orientation.
- Bore finish must suit ring material and coating.
- End gap is measured in each finished cylinder and set from current application-specific instructions.
The top compression ring
The top ring carries most of the combustion-sealing load and operates closest to chamber heat. It may use a barrel, taper or other face profile and coatings intended for the bore and duty cycle. Its ability to seal depends on gas pressure, groove condition, cylinder roundness and surface finish as well as ring tension.
Markings often indicate the upper face. Installing an asymmetric ring upside down can impair sealing. Use the ring manufacturer's diagram rather than relying on color or appearance.
The second ring
The second ring contributes to gas control but often has a major oil-scraping and pressure-management role. Napier or taper-faced designs help direct oil downward. Treating it as simply a backup top ring can lead to incorrect gap or orientation choices.
Pressure trapped between the top and second rings can destabilize the top ring, which is one reason the second-ring end gap may be specified differently. Follow the supplied sheet.
The oil-control ring
A common three-piece oil ring uses two thin rails and an expander. The assembly meters oil on the wall and returns excess through piston drain openings. The expander ends generally butt together rather than overlap, but construction varies. Some engines use one-piece or two-piece oil rings.
Oil-ring groove cleanliness and drainback passages are essential. Excessive oil tension is not a proper fix for worn or distorted cylinders.
| Ring position | Primary role | Critical checks |
|---|---|---|
| Top | Combustion seal and heat transfer | Material, face, orientation, end gap |
| Second | Oil scraping and inter-ring pressure control | Profile, orientation, specified gap relationship |
| Oil assembly | Oil-film regulation and drainback | Expander position, rail gaps, groove and drains |
Ring materials and face treatments
Base materials can include cast iron, ductile iron or steel, with plasma molybdenum, nitriding, chromium-based or other face treatments. Each combination balances conformability, strength, wear and heat resistance. Modern thin steel rings can reduce friction and conform well but require the correct piston and bore preparation.
Do not assume a harder coating is always better. Compatibility with the cylinder material and honing process matters.
Piston-groove compatibility
Confirm axial width, radial depth and back clearance for every groove. A ring that is too thick can bind; one that is too thin can move excessively. Radial interference or insufficient back clearance can prevent the ring from compressing fully into the groove.
Clean and measure used grooves according to the piston manufacturer's limits. Carbon behind a ring restricts movement and can cause sealing problems.
Bore material and surface finish
Cast-iron liners, specialty sleeves and coated aluminum bores can require different ring materials and honing techniques. Surface texture must retain oil while allowing rings to seat. The shop should use ring and block manufacturer guidance for abrasive choice, plateau finish and measured roughness.
A visually attractive crosshatch is not proof of the required surface. Precision instruments and a controlled honing process provide evidence.
End gap
The ring must retain clearance at the ends when it expands under heat. Too little gap can make the ends touch, forcing the ring outward and damaging the piston or bore. Excessive gap can increase leakage, though other engine conditions also influence sealing.
End gap is normally checked with the ring squared in the finished cylinder at the specified depth and measured with clean feeler gauges. File-fit rings are adjusted gradually using an appropriate tool, with ends kept square and deburred. Never use a generic online value in place of current instructions for the exact bore, ring and application.
Ring orientation and gap positions
Observe top markings, bevels, dots and profiles. Install oil rails and expanders in the stated order. Initial ring-gap positions should follow the piston or ring instructions. Rings rotate in operation, so initial staggering is an assembly procedure rather than a permanent seal.
How to choose the right ring set
- Confirm engine code, finished bore and piston manufacturer part number.
- Obtain exact groove width and radial-depth specifications.
- Identify bore or sleeve material and required surface finish.
- Define fuel, power adder, expected temperature and duty cycle with the builder.
- Select the matched ring set recommended by the piston or ring manufacturer.
- Finish-hone cylinders to the required specification.
- Measure and document every ring in its assigned cylinder.
Common assembly mistakes
- Mixing metric and imperial ring dimensions.
- Installing asymmetric rings upside down.
- Overlapping oil-expander ends.
- Setting all gaps from one cylinder measurement.
- Filing too quickly or leaving burrs.
- Using a bore finish intended for different ring material.
- Forcing rings onto pistons without a suitable expander.
- Installing into dirty or damaged grooves.
Browse the FSP piston-ring collection and related engine components. Coordinate exact part numbers and machine specifications before ordering.
Frequently asked questions
Are piston rings universal for the same bore?
No. Groove dimensions, radial depth, materials, face profiles and application also must match.
Do all rings need filing?
No. Some sets are supplied at a finished range; others are file-fit. Every ring still requires verification according to instructions.
Can rings be reused?
Reuse requires professional evaluation of rings, grooves and bores. Rebuilds commonly use a matched new set and corrected surface finish.
Why is the second-ring gap sometimes larger?
Some designs use that relationship to manage pressure between rings. Follow the exact manufacturer's specification.
Engine-building note: Ring fit and bore finish are precision operations. Use measured parts, current technical sheets and a qualified engine machinist.
