Plan drivetrain upgrades by following the engine's torque path: clutch or torque converter, transmission, transfer case where fitted, driveshaft, differential, axles, hubs and tires. The weakest link is not determined by horsepower alone. Peak torque, how abruptly it arrives, vehicle mass, gearing, tire grip, launches, towing and competition duty all affect component load.
Key takeaways
- Start with measured or realistic torque and the vehicle's actual use.
- Inspect existing condition before replacing parts for capacity.
- Added grip and shock loading can expose components that survived on lower-grip tires.
- Upgrade the system in a planned sequence instead of moving failures downstream unexpectedly.
Map the torque path

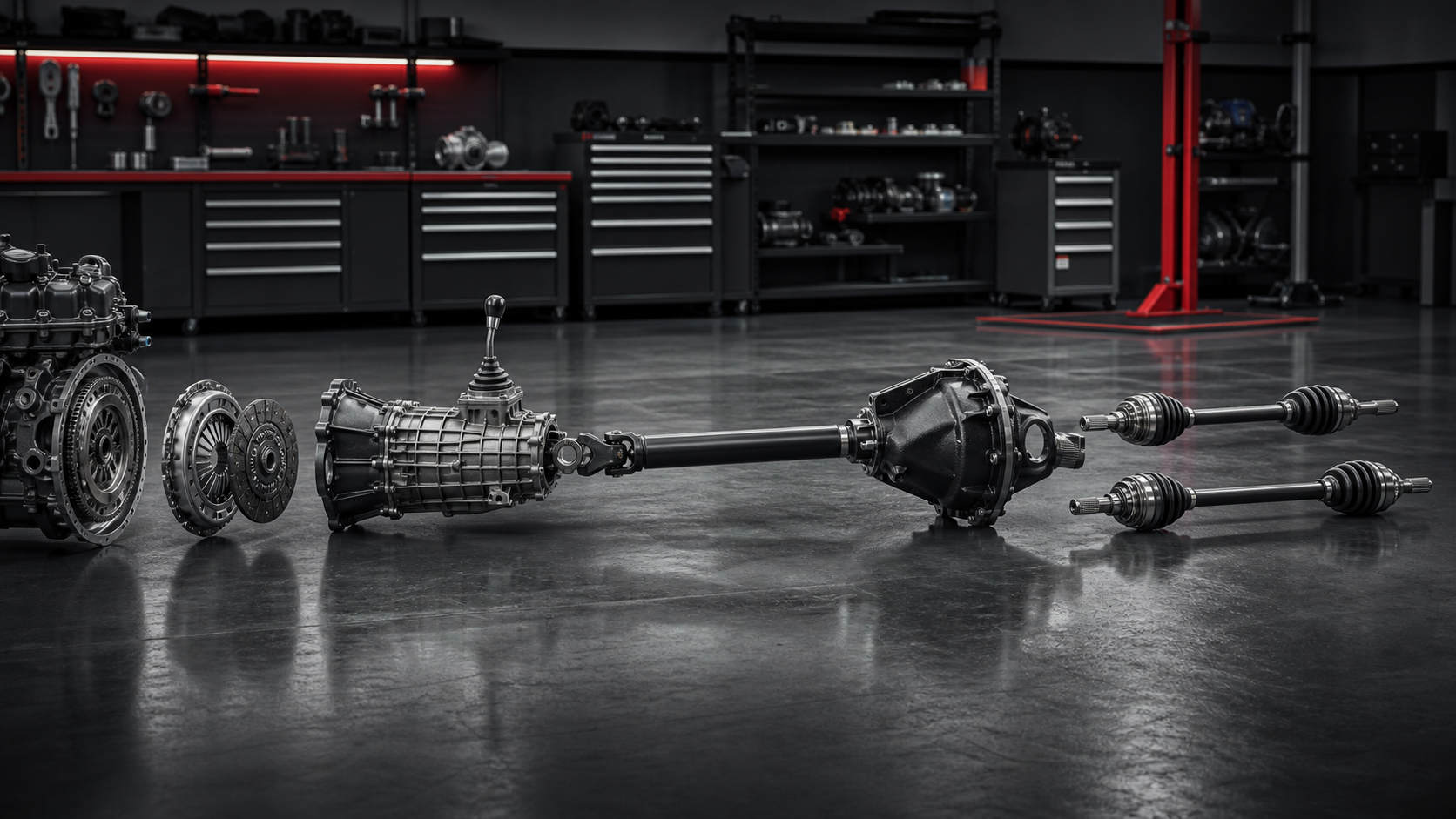

In a rear-wheel-drive manual vehicle, torque flows through the clutch, gearbox, driveshaft, differential and axle shafts. Front-wheel-drive vehicles often integrate transmission and differential in a transaxle, while all-wheel-drive systems add transfer gears, center coupling, multiple shafts and differentials.
Identify exact transmission, differential, axle and flange versions. Production changes and optional packages can alter compatibility even within one model.
Use torque and duty cycle
Horsepower describes how quickly work is done, while drivetrain components react strongly to torque. A turbo engine that delivers a sharp midrange torque increase can load parts differently from a high-rpm naturally aspirated engine with similar peak power.
One controlled acceleration, repeated drag launches, circuit laps and towing create different heat and fatigue. Build around the most demanding realistic use rather than an occasional dyno number alone.
| Component | Main load questions | Other considerations |
|---|---|---|
| Clutch | Torque, heat, launches | Engagement and flywheel |
| Transmission | Gear torque and shock | Oil, temperature and shift strategy |
| Driveshaft | Torque, rpm and critical speed | Length, balance and joint angles |
| Differential | Torque split and heat | Gear setup, fluid and traction behavior |
| Axles | Twist, CV angle and launch shock | Ride height and hub spline |
| Mounts | Powertrain movement | Noise, vibration and alignment |
Clutch and flywheel
Select a clutch using verified torque capacity at the manufacturer's stated reference. Match friction material and disc design to traffic, launch frequency and heat. Confirm flywheel and release-system compatibility rather than choosing only by a stage label.
A clutch that engages too abruptly can protect itself by transferring a stronger shock into gears, shafts and axles. Capacity and drivability must be balanced.
Transmission capacity
Gear design, shaft diameter, bearings, case stiffness, synchronizers, lubrication and input torque influence capacity. Published limits can vary with gear, vehicle weight and use. Heat management and correct oil are important, but additives cannot repair worn synchronizers or damaged bearings.
Automation or dual-clutch transmissions can also have clutch-pack, hydraulic, cooling and software limits. Coordinate hardware with qualified calibration.
Driveshaft design
A driveshaft must match flange or slip-yoke, length, joint type, operating angle, torque and rotational speed. Critical speed can be as important as torque at high road speed. Material changes affect diameter, wall thickness, weight and impact behavior.
Have custom shafts engineered and dynamically balanced by a qualified specialist. Verify tunnel, exhaust and suspension clearance throughout movement.
Differential and final drive
Differential type affects how torque reaches the tires. Open, clutch-type limited-slip, helical and locking designs behave differently under power and during turning. Ring-and-pinion condition, setup, bearings, housing stiffness and fluid determine durability.
Changing final-drive ratio multiplies wheel torque and changes engine speed, heat and speedometer behavior. Gear setup requires specialist measurement.
Axles, CV joints and hubs
Axles see torsion and bending, while CV joints also operate through angles. Lowered ride height can change CV geometry and reduce plunge or articulation margin. Upgraded shafts need compatible inner and outer splines, lengths, ABS tone features and hub interfaces.
A large shaft is not automatically stronger if material, heat treatment, transitions or joint design are poor.
Mounts and chassis movement
Softer mounts isolate vibration but allow movement that can affect wheel hop, shift quality and clearance. Stiffer rubber, polyurethane or solid mounts reduce movement while transmitting more noise and stress. Use a coordinated set and inspect brackets, subframes and fasteners.
Tires, wheel hop and shock load
Higher-grip tires can reveal drivetrain weaknesses. Wheel hop repeatedly loads and unloads shafts and gears, creating severe shock. Address worn bushings, dampers, tire setup and suspension geometry rather than relying only on stronger axles.
How to plan the upgrade sequence
- Confirm exact drivetrain codes, ratios, splines and existing modifications.
- Document realistic engine torque, delivery and intended use.
- Inspect clutch, fluids, joints, mounts, bearings and seals.
- Identify verified limits and failure evidence for the platform.
- Choose clutch and transmission strategy with drivability in mind.
- Engineer shafts, differential and axles for torque, rpm and geometry.
- Address cooling, lubrication, mounts and wheel hop.
- Validate calibration, fasteners, clearances and service intervals.
Common mistakes
- Planning from peak horsepower only.
- Upgrading one axle without checking splines and hubs.
- Choosing an aggressive clutch that increases shock elsewhere.
- Ignoring driveshaft critical speed and joint angle.
- Using stiffer mounts without accepting added vibration.
- Assuming a differential insert fixes worn bearings or gears.
- Testing launches before break-in and inspection.
- Forgetting brakes, tires and chassis safety as speed increases.
Explore the FSP drivetrain collection, single-disc clutches and multi-disc systems. Verify every interface and part number before ordering.
Frequently asked questions
What drivetrain part should I upgrade first?
Inspect the system and compare each verified limit with the planned torque and use. There is no universal first part.
Will stronger axles prevent all breakage?
No. Gears, differential, hubs and joints still carry load, and wheel hop can damage multiple components.
Do stiff mounts make the drivetrain stronger?
They reduce movement but add vibration and can transfer load. They do not increase gear or shaft material strength.
Can software protect a stock transmission?
Torque management can influence load, but it cannot correct wear or guarantee capacity beyond the hardware design.
Safety note: Drivetrain components rotate at high speed and carry significant load. Use qualified engineering and installation for shafts, gears, axles and critical fasteners.
