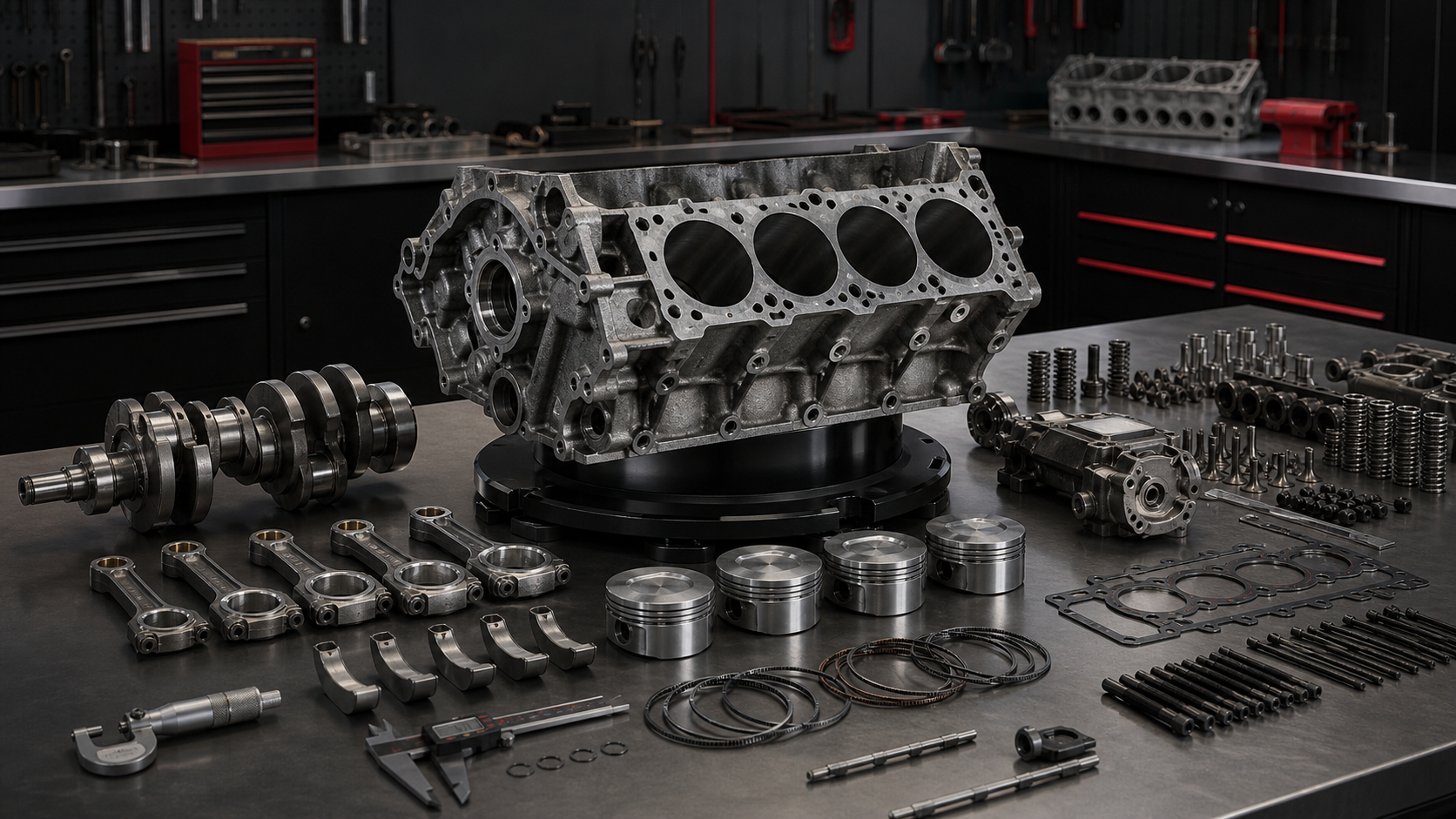

Plan an engine build in the order that decisions depend on one another: define the goal, identify the exact engine, inspect and measure the core parts, choose the rotating assembly, establish machining requirements, then select valvetrain, oiling, sealing, fuel and calibration components. Ordering a pile of attractive parts before the block, crank and cylinder head are measured creates expensive incompatibilities.
Key takeaways
- Write a realistic power, response, fuel and duty-cycle target before selecting components.
- Have the block, crankshaft, rods and cylinder head inspected before committing to sizes.
- Coordinate pistons, rods, crank, bearings, rings, gaskets and machining as one dimensional system.
- Keep a build sheet recording every part number, measurement, clearance and procedure.
1. Define what the engine must do
A street engine that must start in winter, idle in traffic and run for long intervals has different requirements from a drag, road-course, off-road or towing engine. Define fuel availability, naturally aspirated or boosted operation, expected rpm range, target torque curve, vehicle weight, transmission and service interval.
Set a budget that includes machine work, cleaning, balancing, fasteners, gaskets, fluids, tuning and contingency. Peak power is only one requirement; response, heat, emissions, noise and longevity also matter.
2. Identify the exact core
Record engine code, casting numbers, production details, bore and deck configuration, crankshaft stroke, journal sizes, rod dimensions, cylinder-head version and existing modifications. Engine families can contain incompatible revisions.
Photograph and label components during disassembly. Keep matched caps, lifters and valvetrain parts organized when the procedure requires their original positions.
3. Inspect before buying sizes
Clean and inspect the block for cracks, corrosion, stripped threads, deck damage, bore wear and main-saddle condition. Measure cylinders for diameter, taper and out-of-round. Check deck flatness and wall thickness where the build requires it.
Measure crankshaft journals and inspect fillets, thrust surfaces and oil passages. Evaluate rod big ends, pin bores and straightness. Pressure-test and inspect the cylinder head, guides, seats and cam bores. These findings determine whether standard, oversize or undersize components are appropriate.
| Decision | Evidence required first | Affected parts |
|---|---|---|
| Final bore | Cylinder wear and wall condition | Pistons, rings, gasket bore |
| Crank journal size | Journal measurement and regrind plan | Main and rod bearings |
| Compression ratio | Chamber, deck, gasket, crown and stroke dimensions | Pistons, gasket, fuel, cam and tune |
| Rod selection | Stroke, journal, pin and deck geometry | Pistons, crank and balancing |
| Valvetrain | Head condition, cam target and measured clearances | Springs, retainers, followers and pistons |
4. Design the rotating assembly
Crank stroke, rod length and piston compression height must place the piston correctly in the block. Journal widths, fillets, bearing tangs, pin diameter and oil-jet clearance must agree. Calculate compression ratio from measured chamber, gasket and deck data, not a catalog headline.
Choose piston alloy and crown for the fuel, boost, temperature and noise target. Select pins and rings for the expected cylinder pressure and bore material. Have the machine shop review the complete combination.
5. Plan machining around the actual parts
Final boring and honing should occur with the selected pistons and ring specification available. Main and rod housing work should use intended fasteners and torque procedures. Deck machining should preserve the planned piston position, surface finish and timing geometry.
A machining plan can include cleaning, crack inspection, boring, honing with torque plates where specified, line honing, decking, crank grinding or polishing, rod resizing, pin fitting, balancing and cylinder-head work. Not every engine needs every operation.
6. Set every critical clearance
Build specifications include piston-to-wall, ring end gaps, main and rod oil clearance, thrust, piston-to-head, piston-to-valve, rod side clearance, pin fit, cam clearance, valve stem-to-guide, spring installed height and coil-bind margin. Values are specific to the engine and component manufacturers.
Record measurements cylinder by cylinder and journal by journal. Do not average away a bad location.
7. Match the cylinder head and valvetrain
Cam timing, lift and duration influence cylinder pressure, rpm range and valve clearance. Springs must match the cam and valvetrain mass with correct installed height, open pressure and coil-bind clearance. Retainers, locks, followers and lash components must be compatible.
Mock up piston-to-valve clearance through the relevant crank-angle range using the actual gasket and timing arrangement.
8. Oiling, cooling and crankcase control
Inspect pump condition, pickup clearance, pan baffling, galleries and pressure-relief operation. Bearing clearance and intended oil temperature influence viscosity and pump requirements. Cooling passages, plugs, thermostat strategy and radiator capacity should suit the duty cycle.
Plan positive crankcase ventilation for expected blow-by while preserving safe and legal operation. A catch can cannot correct poor ring seal or an undersized ventilation path.
9. Fuel, ignition and calibration
Fuel system capacity and injector control must support the chosen fuel and airflow with margin. Ignition hardware, sensors and ECU strategy must suit compression, boost and rpm. Arrange professional calibration before operating a changed engine under load.
10. Parts, hardware and assembly control
Create one bill of materials including bearings, rings, gaskets, seals, timing components, pumps, fasteners, plugs, filters and break-in consumables. Verify whether critical bolts are reusable and follow the required lubricant and torque-angle procedure.
Maintain controlled cleanliness. Measure tools should be calibrated, and all oil passages, threaded holes and components must be cleaned after machining.
How to choose the right parts
- Confirm the exact engine and measured core condition.
- Approve a written performance and reliability target with the builder and tuner.
- Choose the rotating assembly as a compatible group.
- Have the machine shop define final sizes from actual parts.
- Calculate compression and verify every mechanical clearance.
- Match valvetrain, oiling, cooling, fuel and calibration.
- Record exact manufacturer part numbers before ordering.
- Inspect every delivered part before machining or installation.
Common planning mistakes
- Ordering pistons before measuring the bores.
- Choosing compression without chamber and deck measurements.
- Mixing stroker parts without checking geometry.
- Budgeting for hard parts but not machining and tuning.
- Using universal clearances or torque values.
- Skipping balancing after component changes.
- Reusing questionable pumps, timing parts or fasteners.
- Starting the engine without a verified priming and calibration plan.
Browse FSP engine components, bearings and piston rings. Coordinate exact products with the engine machinist before purchase.
Frequently asked questions
Should I buy pistons before visiting the machine shop?
Have the block inspected first. Once a safe final bore is agreed, the shop often needs the actual pistons before final honing.
Can I build an engine from catalog specifications alone?
No. Catalog data identifies components, while final assembly depends on measured parts and current technical instructions.
Do new parts still need measurement?
Yes. New components must be inspected and verified against the build plan.
How much contingency should a build budget include?
It depends on the project, but reserve funds for inspection findings, machining changes and supporting systems rather than spending the entire budget on initial hard parts.
