The right intercooler lowers charge-air temperature consistently without creating unnecessary pressure loss, excessive volume or cooling-system obstruction. Bigger is not automatically better. Choose around the exact vehicle, turbo airflow, boost and power goal, duty cycle, available frontal airflow and physical packaging. A street pull, repeated circuit laps and sustained towing create different heat loads.
Key takeaways
- Heat rejection and pressure drop must be evaluated together.
- Core thickness and frontal area affect both charge cooling and airflow to radiators behind the intercooler.
- End-tank shape, internal distribution and ducting matter as much as external dimensions.
- Use vehicle-specific test data and confirmed fitment rather than a universal horsepower label.
What an intercooler does
Compressing air raises its temperature. An intercooler transfers heat from the charge air before it reaches the engine, increasing density and helping the calibrated system manage knock risk and repeatability. Most automotive systems use air-to-air or air-to-water heat exchangers.
An intercooler does not create power independently; it supports airflow and temperature control within a properly calibrated forced-induction system.
Air-to-air vs. air-to-water
Air-to-air systems place a charge-air core in ambient airflow. They are mechanically straightforward and can work well with suitable frontal exposure and ducting. Air-to-water systems transfer charge heat into coolant, then reject it through a separate heat exchanger. They can offer flexible packaging and thermal mass but add pumps, reservoirs, lines and another cooling circuit.
Retain the architecture engineered for the vehicle unless the complete conversion is designed and calibrated professionally.
Core size and heat capacity
Frontal area exposes more core to outside air, while thickness can add internal and external heat-transfer area. Fin density, bar-and-plate or tube-and-fin construction, internal passages and material also affect behavior. A very thick core with poor external airflow may not deliver the expected result.
Consider heat soak and repeated operation, not only the temperature change during one pull. Track and towing uses often need sustained heat rejection, while a street build may prioritize response and unobstructed engine cooling.
| Factor | Why it matters | Potential tradeoff |
|---|---|---|
| Frontal area | Ambient airflow and heat transfer | Packaging and radiator blockage |
| Thickness | Thermal mass and flow area | Weight, depth and external restriction |
| Internal passage | Charge flow and pressure drop | Cooling contact vs. restriction |
| End tanks | Distribute airflow across core | Poor shapes create uneven use |
| System volume | Stores compressed air | Can affect transient response |
Pressure drop
Pressure drop is the difference between intercooler inlet and outlet pressure at a specified airflow. Some loss is unavoidable, but excessive restriction makes the compressor work harder to achieve manifold pressure, potentially adding heat and moving it away from an efficient operating range.
Compare data only when flow, pressure, temperature and test methods are stated. A single percentage without conditions is not enough.
End-tank design and flow distribution
Air should use the core effectively rather than concentrating through a small section near the inlet and outlet. End-tank taper, inlet angle, internal guides and core orientation influence distribution. Smooth, structurally sound transitions and quality welds are important, but appearance alone does not prove internal performance.
External airflow and ducting
Ambient air follows pressure differences. Open gaps can let it travel around the core rather than through it. Factory shrouds, seals and bumper ducts often matter. An oversized intercooler can also reduce air reaching the engine radiator, air-conditioning condenser, oil cooler or transmission cooler.
Monitor the complete cooling system after changes, especially in hot weather or sustained-load use.

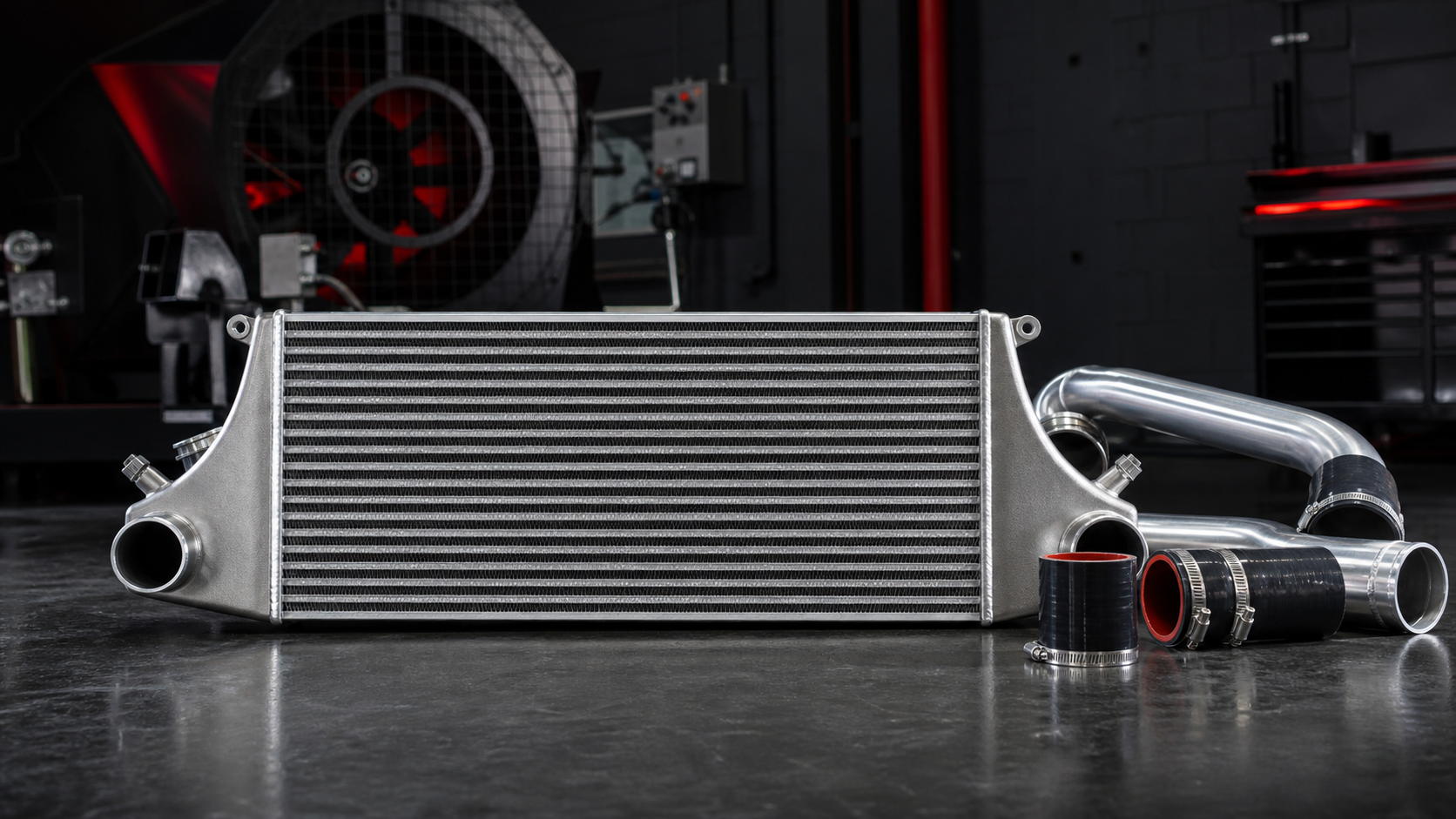

Charge piping and connections
Pipe diameter should support the intended airflow without unnecessary volume or clearance problems. Routes should avoid sharp reductions, excessive bends, hot components and contact with bodywork. Use suitable couplers, bead-rolled ends and clamps. Mount the intercooler so chassis movement does not load the pipes.
Fitment and crash structure
Vehicle-specific kits should identify trimming, bumper-beam interaction, sensor relocation and active-grille compatibility. Do not cut structural or safety components without documented engineering and professional approval. Verify parking sensors, radar, shutters and undertrays remain functional.
How to choose the right intercooler
- Confirm exact vehicle, engine, turbo system and manufacturer part number.
- Define power, boost, fuel, climate and sustained-use requirements with the tuner.
- Review measured temperature and pressure-drop data at relevant airflow.
- Check core, end tanks, ducting and downstream radiator airflow.
- Confirm pipe connections, sensors, valve ports and hardware.
- Review trimming and safety-system implications.
- Plan pressure testing, calibration checks and post-install monitoring.
Common mistakes
- Choosing only by the largest advertised horsepower.
- Ignoring pressure drop or radiator airflow.
- Leaving large gaps around the core.
- Using smooth pipe ends without adequate retention.
- Allowing pipes to rub or couplers to carry intercooler weight.
- Comparing data from different test conditions.
- Assuming lower temperature always means the complete system is optimized.
Compare options in the FSP intercooler collection and related components in forced induction. Confirm vehicle application and coordinate with the tuner before purchase.
Frequently asked questions
Can an intercooler be too large?
Yes. Poor packaging, excessive volume, pressure behavior and blocked cooling airflow can outweigh extra core size.
Does a thicker core always cool better?
No. Core construction, external airflow and internal distribution determine performance.
Do I need a tune after an intercooler upgrade?
Requirements vary. The change can affect temperature and pressure behavior; follow platform and tuner guidance.
How do I know if it heat-soaks?
Use consistent logs of inlet and outlet or manifold temperature across repeated operation, interpreted with ambient conditions and pressure.
Safety note: Pressure-test with approved procedures and keep all charge components clear of moving, hot and safety-critical systems. Use qualified installation and calibration support.
