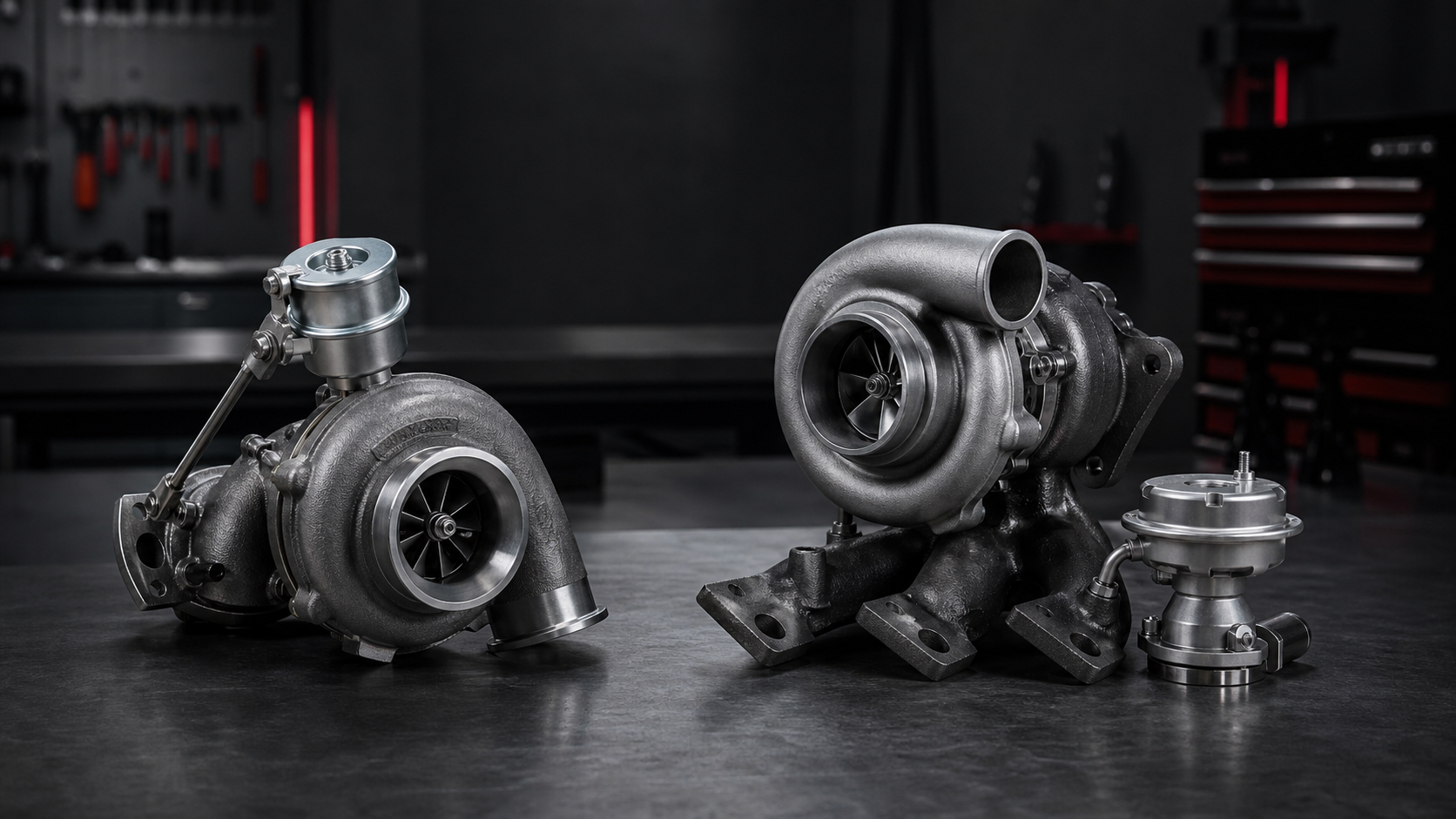

An internal wastegate uses a flapper built into the turbocharger's turbine housing and an attached actuator. An external wastegate is a separate valve mounted on the exhaust manifold or turbine inlet plumbing. Both regulate boost by diverting exhaust flow around the turbine. The right architecture depends on turbo and manifold design, target airflow, packaging, control strategy, noise requirements and legal use—not on which system looks more like a race build.
Key takeaways
- Internal wastegates provide compact packaging and are effective for many vehicle-specific upgrades.
- External gates can offer greater flow capacity and flexible control on systems engineered for them.
- Manifold placement and bypass routing determine how effectively an external valve works.
- Wastegate spring pressure is a mechanical baseline; calibration and control must be planned around it.
What a wastegate controls
Exhaust energy accelerates the turbine, which drives the compressor. The wastegate opens a bypass path so some exhaust avoids the turbine, limiting shaft acceleration and boost. It differs from a blow-off or bypass valve, which manages compressed intake air when the throttle closes.
Boost also depends on engine airflow, exhaust restriction, ambient conditions and calibration. A wastegate is a control device, not a guarantee of one pressure in every condition.
Internal wastegate design
An internal system includes a passage and flapper in the turbine housing. A pneumatic or electronic actuator moves the flapper through a linkage. The integrated design reduces plumbing, can fit factory locations and often works well with stock-style downpipes and heat shielding.
Its capacity is limited by the bypass passage, flapper size, opening angle and pressure distribution. Poor actuator preload, binding linkage or an unsuitable turbine housing can affect control.
External wastegate design
An external valve contains a seat, valve, diaphragm and springs in a separate body. It receives exhaust from a manifold branch and discharges either back into the exhaust or through a dedicated outlet where legally and safely permitted. Location and branch angle must allow the gate to receive sufficient flow.
External designs are available in different valve sizes and control-port arrangements. Larger is not automatically better; sizing depends on engine displacement, turbine match, desired boost range, fuel, manifold pressure and required bypass flow.
| Decision factor | Internal wastegate | External wastegate |
|---|---|---|
| Packaging | Compact and integrated | Needs manifold space and plumbing |
| Installation | Fewer separate components | Valve, flange, lines and outlet routing |
| Flow capacity | Housing-dependent | Selectable valve and placement |
| Service access | Can be tight near turbo | Depends on mounting location |
| Noise | Normally routed into exhaust | Recirculated or very loud separate outlet |
| Best fit | Stock-location and moderate packaged systems | Manifolds engineered for external control |
Wastegate size and boost target
A lower target boost can require more bypass flow because a larger share of exhaust must avoid the turbine. A small responsive turbine on a high-flow engine may also demand significant gate capacity. Conversely, an unnecessarily large valve can complicate packaging without improving control.
Use turbo and wastegate manufacturer calculations or platform experience. Do not select valve diameter from engine power alone.
Spring pressure and control
Springs establish the approximate mechanical opening baseline under the specified reference arrangement. Electronic or manual controllers manipulate pressure signals to achieve higher controlled boost. The ECU may also integrate throttle, ignition, fuel and torque strategies.
Never assume springs can be stacked in any combination. Follow the valve chart and installation procedure, and verify which chamber ports are used. Begin with a conservative baseline appropriate for the calibration.
Placement and manifold priority
An external gate should branch where exhaust can enter it effectively, often with a smooth path and favorable angle relative to turbine flow. A large valve placed behind a poor junction may control worse than a smaller correctly positioned one. Divided manifolds can require specific routing or multiple gates to preserve pulse separation.
Recirculated vs. separate discharge
Recirculating the bypass flow into the exhaust contains noise and fumes but requires a well-designed merge. A separate discharge is extremely loud and can expose nearby parts to hot exhaust; it may be prohibited for road use and unsafe if routed poorly. Verify laws, track rules and fire safety before considering it.
Heat, lines and service
Use heat-resistant reference hose, secure fittings and routing away from exhaust contact. Keep valve diaphragms and clamps accessible for inspection. Check V-band engagement, flange flatness, fasteners and outlet clearance. A failed reference line can produce uncontrolled boost.
How to choose the right wastegate system
- Confirm engine, turbo, turbine housing, manifold and calibration strategy.
- Define desired minimum and maximum boost with the tuner.
- Calculate or obtain recommended bypass capacity.
- Evaluate manifold placement and discharge routing.
- Select spring range and control-port arrangement from manufacturer data.
- Plan heat protection and service access.
- Verify emissions, noise and road-use requirements.
- Pressure-test and calibrate under qualified supervision.
Common mistakes
- Choosing external solely because it appears more capable.
- Sizing from peak horsepower only.
- Placing the valve where exhaust cannot reach it effectively.
- Using incorrect spring combinations or reference ports.
- Routing hot discharge toward wiring, hoses or the cabin.
- Confusing boost creep with a controller setting issue.
- Operating under load before calibration and overboost safeguards are verified.
Explore FSP wastegates, turbochargers and the wider forced-induction collection. Coordinate exact part numbers with the manifold, turbo and tuner.
Frequently asked questions
Does an external wastegate make more power?
It controls bypass flow; power comes from the complete engine and turbo system. Better control may support a target, but the valve does not create power alone.
Can I convert any internal turbo to external?
Only with a properly engineered manifold, turbine-housing strategy, outlet route and calibration.
What is boost creep?
Boost rising above target at higher airflow can occur when the bypass path cannot divert enough exhaust, though diagnosis should examine the full system.
Can a controller lower boost below spring pressure?
Conventional arrangements generally cannot reliably command below the mechanical baseline. Select springs with the tuner.
Safety note: Wastegate systems handle extremely hot exhaust and directly affect boost control. Use qualified fabrication, installation and calibration with functional overboost protection.
