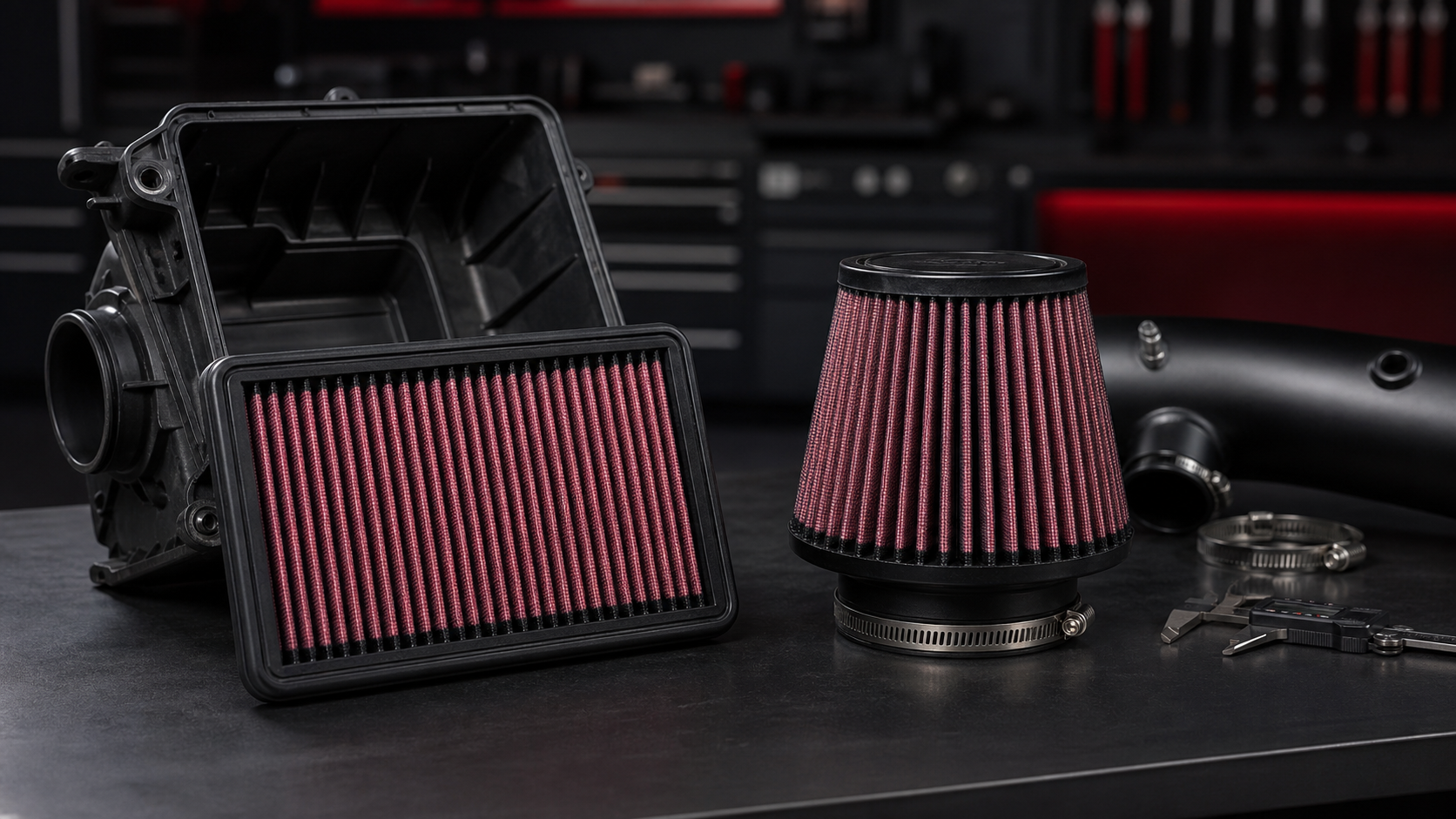

A direct-fit air filter is designed to replace the original filter in a specified factory airbox. A universal filter is selected by physical dimensions and connection style for a custom or aftermarket intake. Direct-fit is usually the straightforward choice for an otherwise factory intake; universal can provide flexibility when the installer has measured the system and can create a secure, sealed installation.
Key takeaways
- Direct-fit filters must match the exact vehicle application and airbox.
- Universal filters require confirmed flange diameter, space, length, shape and airflow direction.
- A filter that attaches physically is not necessarily suitable for the engine or sensor system.
- Correct sealing and filtration matter more than appearance.
What direct-fit means
A direct-fit panel or cartridge filter uses dimensions, sealing edges and construction intended for a particular factory housing. Installation normally retains the factory cool-air ducting, water management and sensor arrangement. Product listings may still vary by engine, production date or regional airbox, so verify the manufacturer part number rather than relying only on the model name.
What universal fit means
A universal cone, cylinder or oval filter is offered by flange and body dimensions rather than a complete vehicle application. It can be useful for a custom intake, engine swap, fabricated airbox or replacement on a system that specifies those dimensions. “Universal†does not mean it will fit every engine bay or flow appropriately for every engine.
| Decision factor | Direct-fit | Universal |
|---|---|---|
| Selection method | Vehicle and manufacturer application | Measured flange and space envelope |
| Factory airbox | Retained | Often modified or replaced |
| Fabrication | Normally none | May require tube, bracket, shield or enclosure |
| Sensor layout | Usually unchanged | Must be engineered separately |
| Installation risk | Low when correctly matched | Depends on measurement and workmanship |
| Flexibility | Application-specific | High for custom systems |
Sealing is essential
A panel filter must seal around the entire airbox perimeter so unfiltered air cannot bypass the media. Check that the old seal has not remained in the housing, the new element sits flat and the lid closes without force. A universal filter must clamp to a clean, appropriately sized tube or adapter and remain supported so engine movement cannot loosen it.
Air leaks before the filter admit dirt. Leaks after a MAF sensor can also create unmetered airflow and drivability problems. Inspect couplers, breather connections and clamps as part of the installation.
How to measure a universal filter
- Measure the outside diameter of the intake tube or the filter-mounting flange at the clamping location.
- Confirm whether the filter flange is straight, stepped, angled or offset.
- Measure maximum filter base diameter, top diameter and overall length.
- Allow clearance for engine movement, the hood, radiator fan, wiring and hot components.
- Determine how the filter will be supported and shielded from heat and water.
- Verify the intended airflow and filtration capacity with the filter manufacturer.
Do not tighten a significantly oversized flange until it folds, or force an undersized filter over a tube. Use the correct dimension or an engineered adapter.
Airflow and filter size
Filter surface area, media, pleat depth and pressure loss all contribute to capacity. A physically larger filter is not automatically better if it obstructs the airbox, sits against a panel or cannot receive a stable air supply. Use manufacturer flow guidance where available and retain enough margin for the engine's intended airflow.
MAF sensors and intake geometry
The filter itself may sit upstream of a MAF sensor, but changing the nearby tube, housing diameter or airflow pattern can change sensor readings. Avoid placing a sensor immediately after a sharp bend or directly in turbulent flow unless the engineered system specifies that position. A direct-fit filter normally avoids this issue because the original housing remains intact.
Dry vs. oiled media
Both direct-fit and universal filters may use dry or oiled media. Dry filters generally require replacement or a specified cleaning method. Oiled reusable filters require the correct cleaner, oil and drying process. Too much oil can migrate; too little or uneven coverage can reduce intended filtration. Follow the exact product instructions.
Heat and water management
The factory airbox usually provides a cool-air route and protection against splash. An exposed universal filter inside the engine bay may ingest warmer air, while a low-mounted filter can face water. A custom system should include a properly designed enclosure or shield, drainage where appropriate and secure ducting.
How to choose the right filter
- For a factory airbox, identify the exact vehicle and use a confirmed manufacturer application.
- Compare the listed filter dimensions with the removed element if uncertainty remains.
- For a custom system, measure every flange and clearance dimension.
- Confirm media type, cleaning method and replacement availability.
- Check sensor compatibility and the complete intake path.
- Plan secure support, heat isolation and water protection.
Common mistakes
- Assuming all trims use the same airbox.
- Selecting a universal filter by appearance alone.
- Leaving gaps around a panel-filter seal.
- Allowing a cone filter to hang unsupported from a sensor housing.
- Positioning the filter against a hot or moving component.
- Over-oiling reusable media.
- Ignoring local emissions requirements for intake modifications.
Which should you buy?
Choose direct-fit when the factory airbox remains and you want a low-complexity replacement. Choose universal only when the intake design genuinely requires it and the relevant dimensions, support, sensor behavior and environmental protection have been addressed.
Browse direct-fit air filters, universal air filters and the complete FSP air-filter collection. Confirm live product fitment and dimensions before ordering.
Frequently asked questions
Can a universal filter replace any factory panel filter?
No. Converting the housing changes the intake system and requires an engineered mounting, air path and sensor arrangement.
Is a cone filter always less restrictive?
No. Media, size, airflow path and engine demand determine restriction.
Can I measure only the inlet diameter?
No. Overall length, body diameter, flange style, clearance and support also matter.
Should a direct-fit filter require force to close the airbox?
No. Recheck the application, orientation, old gasket and seating rather than forcing the lid.
Fitment note: Verify product dimensions and application data. Ensure the filter seals completely and keep all intake parts clear of heat and moving components.
