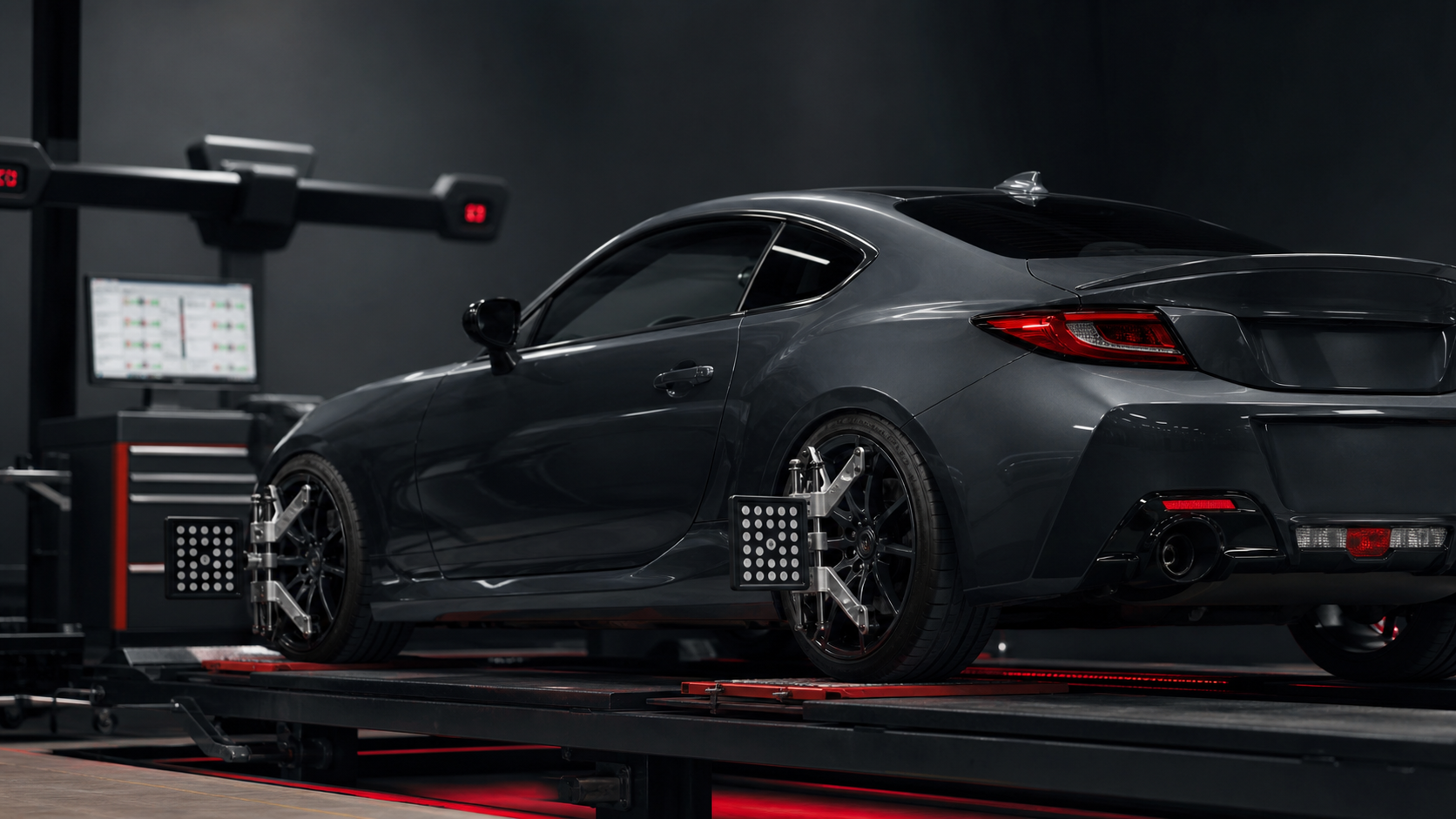

A professional four-wheel alignment should follow any meaningful ride-height change. Lowering alters the resting position of suspension arms and steering links, which can change toe, camber and sometimes caster. The correct target is not a universal “lowered-car specificationâ€; it is a measured setup based on the exact vehicle, tire, suspension design and intended use.
Key takeaways
- Align the vehicle after installing lowering springs or coilovers and after later height changes.
- Toe is especially important for tire life and stability, even when camber attracts more attention.
- Let new components settle as directed, but do not drive extensively with visibly incorrect alignment.
- Adjustable arms or plates should solve a measured limitation, not be purchased automatically.
Why lowering changes alignment
Suspension components move through arcs. When the chassis sits lower, control arms, struts, multilinks and tie rods rest at different points in those arcs. The resulting wheel angles depend on the platform. Many vehicles gain negative camber as they lower, while toe can move inward or outward. Caster may also change where adjustment or bushing position allows it.
The amount of change cannot be predicted accurately from drop height alone. Vehicle load, bushing condition, left-to-right ride height, previous collision repairs and manufacturing tolerances all influence the reading.
The alignment angles that matter
| Angle | What it describes | Why it matters |
|---|---|---|
| Toe | Whether the tires point toward or away from each other viewed from above | Stability, steering response and rapid tire scrub |
| Camber | Wheel tilt viewed from the front | Cornering contact, straight-line contact and wear distribution |
| Caster | Steering-axis tilt viewed from the side | Self-centering, stability and steering feel |
| Thrust angle | Direction the rear axle or rear wheel pair points | Vehicle tracking and steering-wheel position |
Why toe deserves special attention
Negative camber can contribute to inner-shoulder wear, but incorrect toe often destroys tires much faster because the tread is continuously dragged sideways. A lowered car can look acceptable while carrying significant toe error. A centered steering wheel is not proof that total toe or thrust angle is correct.
Ask for a before-and-after alignment printout. It records the actual measurements and helps identify a value that cannot be brought into the desired range.
When should the alignment be performed?
Follow the suspension manufacturer's instructions. Some springs settle slightly after initial use, and adjustable systems should have their final road height established before alignment. After installation, confirm safe clearance and basic tracking immediately. If the wheels visibly point incorrectly, the steering wheel is far off center or the vehicle behaves unpredictably, do not wait through extended driving.
After the initial alignment, recheck ride height, fasteners and alignment at the interval recommended by the component manufacturer or installer. Repeat the alignment whenever ride height, control arms, tie rods, subframe position or related geometry changes.
Street alignment vs. performance alignment
A street alignment balances tire life, straight-line stability, predictable wet behavior and cornering response. A closed-course setup may use more negative camber or different toe to manage tire temperature and response. Track-derived settings should not be copied blindly to a daily driver.
Discuss the tire, normal load, road conditions and intended use with the alignment technician. If a manufacturer supplies a recommended range for its suspension package, bring that documentation.
When adjustable components may be needed
Some vehicles retain sufficient factory adjustment after a moderate drop. Others need camber plates, adjustable control arms, toe links or correction bushings to reach the intended range. The right solution depends on which measured angle is out of range and where adjustment can be added safely.
Adjustable parts also affect clearance, joint maintenance and noise. Confirm the exact application, adjustment range, joint type and installation requirements. Avoid generic correction hardware that does not match the suspension design.
Checks before the alignment
- Settle and set ride height according to product instructions.
- Match left-to-right tire pressures and inspect tire condition.
- Confirm the normal fuel and load condition requested by the vehicle procedure.
- Inspect wheel bearings, ball joints, tie rods and bushings for play.
- Verify springs are seated and locking collars are secured.
- Check wheel and tire clearance at steering lock and through travel.
- Confirm subframe position where it was loosened during installation.
How to choose the right part for your vehicle
- Record the exact year, make, model, generation, body style, engine, drivetrain and trim.
- Install only a suspension package confirmed for that configuration.
- Measure final ride height on a level surface using consistent reference points.
- Obtain an alignment reading before ordering correction parts.
- Select adjustable components that correct the measured limitation and retain safe joint travel.
- Align the car with the normal wheel, tire and load combination.
Common mistakes
- Aligning before final ride height is set.
- Correcting visible camber while overlooking toe.
- Using another owner's settings without matching vehicle and tire use.
- Attempting alignment with worn joints or uneven tire pressure.
- Changing coilover height after alignment and assuming the readings remain valid.
- Choosing aggressive track values for a high-mileage street car.
After-alignment checklist
Keep the printout, verify the steering wheel is centered on a safe test drive and monitor tire wear across the tread. Reinspect for rubbing and listen for new noises. If the vehicle pulls, wanders or shows rapid uneven wear, have the vehicle and tires diagnosed rather than repeatedly changing alignment values without evidence.
Browse FSP suspension components or compare vehicle-specific options in the coilover collection. Confirm every manufacturer part number and application note before ordering.
Frequently asked questions
Can I drive before the alignment?
A short careful trip to the alignment shop may be appropriate if installation checks and basic geometry are safe. Avoid extended driving or high speeds with unknown alignment.
Does every lowered car need camber arms?
No. Measure first. Factory adjustment may be sufficient, while another platform may require a specific correction component.
Do I need another alignment after changing coilover height?
Yes. Ride-height changes can alter alignment and clearance, so remeasurement is necessary.
Will alignment eliminate every pull?
No. Tire conicity, road crown, brake drag, worn components and structural issues can also cause a pull.
Safety note: Alignment and suspension condition affect steering, braking stability and tire integrity. Use qualified inspection and follow the vehicle and component manufacturers' procedures.
