RockJock

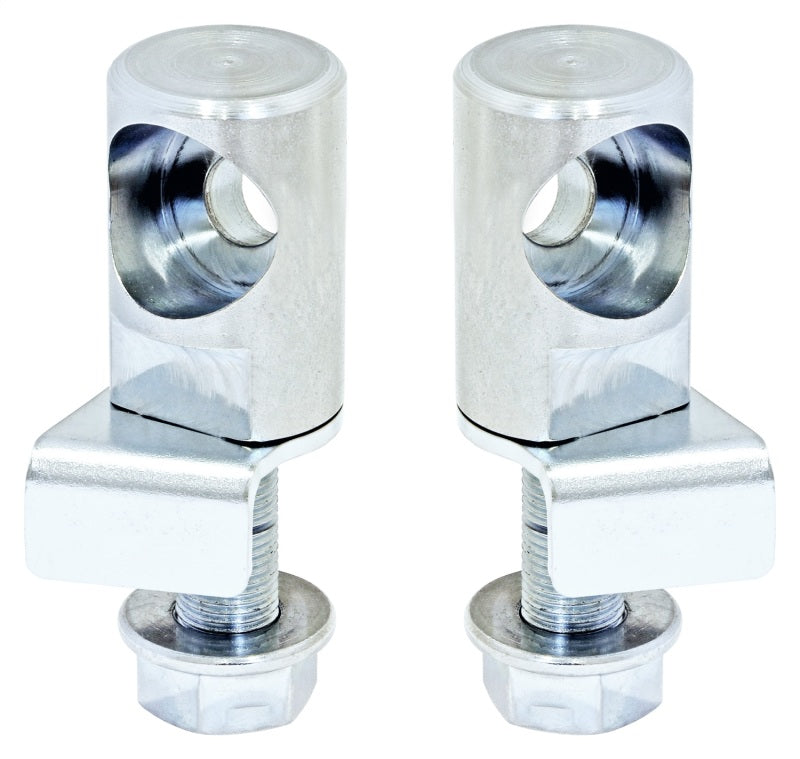

RockJock Adjustable Sway Bar End Link Mount Kit 9/16in -18 RH Thread
$115.00
RockJock's Sway Bar End Link Mounting Kit for 2021-up Bronco installs into the hole on the Bronco front lower control arm that the factory sway bar end link is removed from. This kit includes the billet steel end link mounts, the RH/LH...
Financing options may be available at checkout, subject to approval.
Free shippingQualifying U.S. orders
Product supportReal specialist help
Genuine partsManufacturer backed
Available from supplier
Special-order item. Supplier availability and lead time are confirmed after your order.
Vehicle compatibilitySelect your vehicle
Choose your vehicle to check available compatibility data for this part.
Product information.
About this product
RockJock's Sway Bar End Link Mounting Kit for 2021-up Bronco installs into the hole on the Bronco front lower control arm that the factory sway bar end link is removed from. This kit includes the billet steel end link mounts, the RH/LH specific rotational locks and the new nuts to tighten them up with! The bores in the side of the mounts allow our end link rod ends to bolt up with the rod end nut installed into the bore on the side of the mount. Fabricated from 1 1/4 in. steel bar stock, the mounts include various machined features including bores in the sides of the mounts allow our end link rod ends to bolt up with the rod end nut installed into the bore on the side of the mount, a wrench flat that accepts a 7/8 in. wrench, a double-D shaped machined hub that the RH and LH rotational locks fit onto and 9/16 in.-18 RH threads on the bottom. Rotational locks are laser cut and formed 1/8 in. steel and the locking flange nuts feature 9/16 in.-18 threads. Finish on all components is clear zinc plating.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2024 | Ford | Bronco | Badlands |
| 2021-2023 | Ford | Bronco | Base |
| 2021-2024 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2022-2024 | Ford | Bronco | Everglades |
| 2021 | Ford | Bronco | First Edition |
| 2023-2024 | Ford | Bronco | Heritage Edition |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition |
| 2021-2024 | Ford | Bronco | Outer Banks |
| 2022-2024 | Ford | Bronco | Raptor |
| 2021-2024 | Ford | Bronco | Wildtrak |
Product specifications.
- Brand
- RockJock
- Product category
- Sway Bar Endlinks
- SKU / part number
- ROKRJ-281100-101
- Availability
- In stock
