Edelbrock

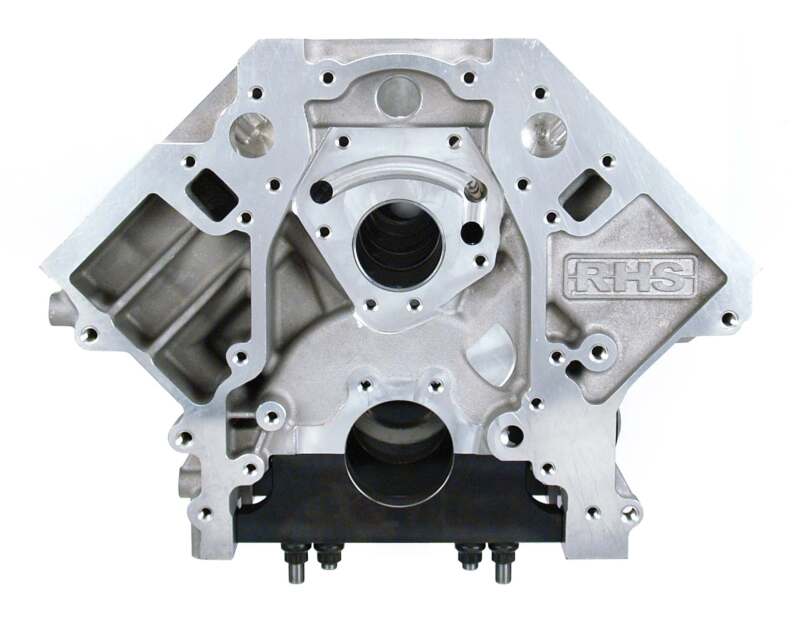

Edelbrock RHS LS Aluminum Race Block (Ready to Hone) 9.750in Tall Deck - 4.120in Bore
$6,904.95
Block Specifications: Designed from heavy-duty A357-T6 aluminum material; 4.125”-4.165” siamese cast bore walls w/ press-in spun cast iron liner; Available in standard (9.240”) & tall (9.750”) deck heights w/ beefy .750” deck thickness; Both standard deck (5.67”/5.87”- same as LS7) & tall...
Financing options may be available at checkout, subject to approval.
Free shippingQualifying U.S. orders
Product supportReal specialist help
Genuine partsManufacturer backed
Available from supplier
Special-order item. Supplier availability and lead time are confirmed after your order.
Vehicle compatibilitySelect your vehicle
Choose your vehicle to check available compatibility data for this part.
Product information.
About this product
Block Specifications: Designed from heavy-duty A357-T6 aluminum material; 4.125”-4.165” siamese cast bore walls w/ press-in spun cast iron liner; Available in standard (9.240”) & tall (9.750”) deck heights w/ beefy .750” deck thickness; Both standard deck (5.67”/5.87”- same as LS7) & tall deck (5.94”/6.38”) cylinder liner lengths available; “Long arm friendly” – Accommodations for up to 4.6” stroke w/ standard rod pin diameters (2.100”) & oversized 60mm camshaft; Main cap surface area maximized at mating surface & large fillets from cap to cross bolts for added strength; Designed for clearance – side oil galley moved outboard & engineered rod clearance come standard; Significantly increased windage passage area under bores & around caps over LS7/LSX engines; 6 head bolt design w/ full water jacket around the cylinders (based on LS7 design); Bay-to-bay breathing improved w/ increased side window area versus LSX & LS7; Extra-large windows in valley for access to inboard “6th” head bolt; Extra-long liners for standard (5.87”) & tall (6.38”) decks
Product specifications.
- Brand
- Edelbrock
- Product category
- Engines
- SKU / part number
- EDE54901U
- Availability
- In stock
