COMP Cams

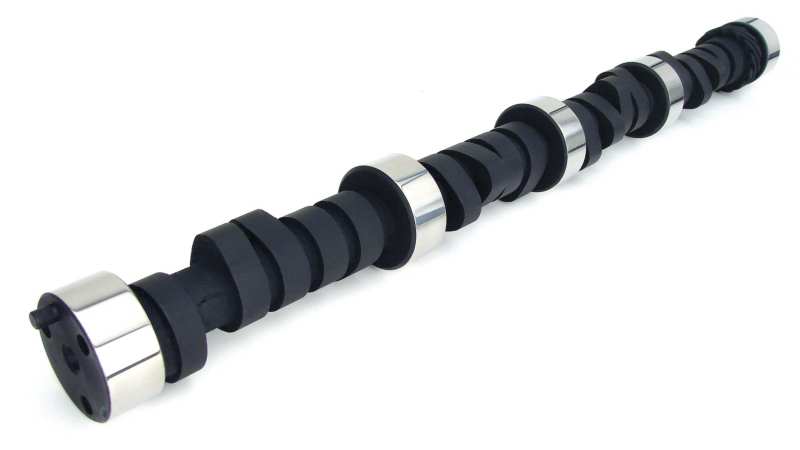

COMP Cams Camshaft CS XE256H-10
$293.95
excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-234-2 Grind #XE256H-10. Duration @ 0.006": 256 /...
Financing options may be available at checkout, subject to approval.
Free shippingQualifying U.S. orders
Product supportReal specialist help
Genuine partsManufacturer backed
Available from supplier
Special-order item. Supplier availability and lead time are confirmed after your order.
Vehicle compatibilitySelect your vehicle
Choose your vehicle to check available compatibility data for this part.
Product information.
About this product
excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-234-2 Grind #XE256H-10. Duration @ 0.006": 256 / 268deg. Duration @ 0.050": 212/ 218deg. Max Lift w/ 1.5RR: .447" / .454". Lobe Separation: 110deg. Lobe ID#'s: 5441 / 5230. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block Bore:4.040" Stroke:3.480". Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R Intake: Edelbrock Performer Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers Max Torque: 411 ft/lbs @ 3600 RPM. Max Power: 330 HP @ 4700 RPM. Manifold Vacuum: 18.5" Hg @ 800 RPM & 20" Hg @ 1000 RPM w/ no load.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1995-1996 | AM General | Hummer | Base |
| 1980-1985,1987-1991 | Avanti | II | Base |
| 1985 | Avanti | II | GT |
| 1980 | Buick | Century | Base |
| 1980 | Buick | Century | Estate |
| 1980 | Buick | Century | Limited |
| 1991-1996 | Buick | Commercial Chassis | Base |
| 1980 | Buick | Regal | Base |
| 1980 | Buick | Regal | Limited |
| 1992-1995 | Buick | Roadmaster | Base |
| 1996 | Buick | Roadmaster | Collector's Edition |
| 1991-1995 | Buick | Roadmaster | Estate Wagon |
| 1996 | Buick | Roadmaster | Estate Wagon Collector's Edition |
| 1992-1995 | Buick | Roadmaster | Limited |
| 1996 | Buick | Roadmaster | Limited Collector's Edition |
| 1990-1992 | Cadillac | Brougham | Base |
| 1990-1992 | Cadillac | Brougham | d'Elegance |
| 1994-1996 | Cadillac | Commercial Chassis | Base |
| 1992-1996 | Cadillac | Commercial Chassis | Brougham |
| 1993-1996 | Cadillac | Fleetwood | Base |
| 1993-1996 | Cadillac | Fleetwood | Brougham |
| 1980-1982 | Checker | Marathon | Base |
| 1980-1982 | Checker | Marathon | Deluxe |
| 1994 | Chevrolet | Blazer | Base |
| 1992-1993 | Chevrolet | Blazer | Cheyenne |
| 1987 | Chevrolet | Blazer | Custom Deluxe |
| 1988-1991 | Chevrolet | Blazer | Scottsdale |
| 1987-1994 | Chevrolet | Blazer | Silverado |
| 1994 | Chevrolet | Blazer | Silverado Sport |
| 1980 | Chevrolet | C10 | Big Ten |
| 1980-1981 | Chevrolet | C10 | Cheyenne |
| 1981-1986 | Chevrolet | C10 | Custom |
| 1980 | Chevrolet | C10 | Custom Deluxe |
| 1981 | Chevrolet | C10 | Deluxe |
| 1980-1986 | Chevrolet | C10 | Scottsdale |
| 1980-1986 | Chevrolet | C10 | Silverado |
| 1981-1986 | Chevrolet | C10 Suburban | Custom |
| 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | C10 Suburban | Scottsdale |
| 1980,1982-1986 | Chevrolet | C10 Suburban | Silverado |
| 1994-1995 | Chevrolet | C1500 | Base |
| 1988-1995 | Chevrolet | C1500 | Cheyenne |
| 1988-1992 | Chevrolet | C1500 | Scottsdale |
| 1988-1995 | Chevrolet | C1500 | Silverado |
| 1990-1995 | Chevrolet | C1500 | WT |
| 1992-1995 | Chevrolet | C1500 Suburban | Base |
| 1995 | Chevrolet | C1500 Suburban | LS |
| 1995 | Chevrolet | C1500 Suburban | LT |
| 1992-1994 | Chevrolet | C1500 Suburban | Silverado |
| 1980-1981 | Chevrolet | C20 | Cheyenne |
| 1981-1986 | Chevrolet | C20 | Custom |
| 1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1980-1986 | Chevrolet | C20 | Scottsdale |
| 1980-1986 | Chevrolet | C20 | Silverado |
| 1981-1986 | Chevrolet | C20 Suburban | Custom |
| 1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | C20 Suburban | Scottsdale |
| 1980,1982-1986 | Chevrolet | C20 Suburban | Silverado |
| 1994-1995 | Chevrolet | C2500 | Base |
| 1988-1995 | Chevrolet | C2500 | Cheyenne |
| 1988-1992 | Chevrolet | C2500 | Scottsdale |
| 1988-1995 | Chevrolet | C2500 | Silverado |
| 1994-1995 | Chevrolet | C2500 | WT |
| 1992-1995 | Chevrolet | C2500 Suburban | Base |
| 1995 | Chevrolet | C2500 Suburban | LS |
| 1995 | Chevrolet | C2500 Suburban | LT |
| 1992-1994 | Chevrolet | C2500 Suburban | Silverado |
| 1980-1981 | Chevrolet | C30 | Cheyenne |
| 1981-1986 | Chevrolet | C30 | Custom |
| 1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1980-1986 | Chevrolet | C30 | Scottsdale |
| 1980-1986 | Chevrolet | C30 | Silverado |
| 1994-1995 | Chevrolet | C3500 | Base |
| 1988-1995 | Chevrolet | C3500 | Cheyenne |
| 1988-1992 | Chevrolet | C3500 | Scottsdale |
| 1988-1995 | Chevrolet | C3500 | Silverado |
| 1980 | Chevrolet | Camaro | Base |
| 1980-1986 | Chevrolet | Camaro | Berlinetta |
| 1985-1986 | Chevrolet | Camaro | Iroc-Z |
| 1980 | Chevrolet | Camaro | Rally Sport |
| 1981-1986 | Chevrolet | Camaro | Sport |
| 1980-1986 | Chevrolet | Camaro | Z28 |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1986-1992 | Chevrolet | Caprice | Base |
| 1980-1996 | Chevrolet | Caprice | Classic |
| 1986-1990 | Chevrolet | Caprice | Classic Brougham |
| 1981-1982 | Chevrolet | Caprice | Classic Estate |
| 1980-1981 | Chevrolet | Caprice | Classic Landau |
| 1993-1994 | Chevrolet | Caprice | Classic LS |
| 1987-1990 | Chevrolet | Caprice | Classic LS Brougham |
| 1991-1993 | Chevrolet | Caprice | Classic LTZ |
| 1980 | Chevrolet | Caprice | Classic Sport |
| 1991-1994 | Chevrolet | Commercial Chassis | Base |
| 1980-1982,1984-1986 | Chevrolet | Corvette | Base |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1980-1987 | Chevrolet | El Camino | Base |
| 1981-1986 | Chevrolet | El Camino | Conquista |
| 1980-1981 | Chevrolet | El Camino | Royal Knight |
| 1980-1987 | Chevrolet | El Camino | SS |
| 1996 | Chevrolet | Express 2500 | LS |
| 1983 | Chevrolet | G10 | Base |
| 1980-1995 | Chevrolet | G10 | Beauville |
| 1981-1984,1986-1987 | Chevrolet | G10 | Bonaventure |
| 1980-1995 | Chevrolet | G10 | Chevy Van |
| 1980-1995 | Chevrolet | G10 | Sportvan |
| 1980-1995 | Chevrolet | G20 | Beauville |
| 1983-1984 | Chevrolet | G20 | Bonaventure |
| 1980-1995 | Chevrolet | G20 | Chevy Van |
| 1980-1981 | Chevrolet | G20 | Nomad |
| 1980-1995 | Chevrolet | G20 | Sportvan |
| 1980-1996 | Chevrolet | G30 | Beauville |
| 1983-1984 | Chevrolet | G30 | Bonaventure |
| 1980-1996 | Chevrolet | G30 | Chevy Van |
| 1980-1996 | Chevrolet | G30 | Hi-Cube |
| 1980-1996 | Chevrolet | G30 | Sportvan |
| 1980-1985 | Chevrolet | Impala | Base |
| 1981-1982 | Chevrolet | Impala | Estate |
| 1980 | Chevrolet | Impala | Sport |
| 1994-1996 | Chevrolet | Impala | SS |
| 1980-1981 | Chevrolet | K10 | Cheyenne |
| 1981-1986 | Chevrolet | K10 | Custom |
| 1980 | Chevrolet | K10 | Custom Deluxe |
| 1981 | Chevrolet | K10 | Deluxe |
| 1980-1986 | Chevrolet | K10 | Scottsdale |
| 1980-1986 | Chevrolet | K10 | Silverado |
| 1981-1986 | Chevrolet | K10 Suburban | Custom |
| 1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K10 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | K10 Suburban | Scottsdale |
| 1980,1982-1983,1985-1986 | Chevrolet | K10 Suburban | Silverado |
| 1994-1995 | Chevrolet | K1500 | Base |
| 1988-1995 | Chevrolet | K1500 | Cheyenne |
| 1988-1992 | Chevrolet | K1500 | Scottsdale |
| 1988-1995 | Chevrolet | K1500 | Silverado |
| 1991 | Chevrolet | K1500 | Sport |
| 1990-1995 | Chevrolet | K1500 | WT |
| 1992-1995 | Chevrolet | K1500 Suburban | Base |
| 1995 | Chevrolet | K1500 Suburban | LS |
| 1995 | Chevrolet | K1500 Suburban | LT |
| 1992-1994 | Chevrolet | K1500 Suburban | Silverado |
| 1980-1981 | Chevrolet | K20 | Cheyenne |
| 1981-1986 | Chevrolet | K20 | Custom |
| 1980 | Chevrolet | K20 | Custom Deluxe |
| 1981 | Chevrolet | K20 | Deluxe |
| 1980-1986 | Chevrolet | K20 | Scottsdale |
| 1980-1983,1985-1986 | Chevrolet | K20 | Silverado |
| 1981-1986 | Chevrolet | K20 Suburban | Custom |
| 1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K20 Suburban | Deluxe |
| 1980,1982,1984-1986 | Chevrolet | K20 Suburban | Scottsdale |
| 1980,1982-1983,1985-1986 | Chevrolet | K20 Suburban | Silverado |
| 1994-1995 | Chevrolet | K2500 | Base |
| 1988-1995 | Chevrolet | K2500 | Cheyenne |
| 1988-1992 | Chevrolet | K2500 | Scottsdale |
| 1988-1995 | Chevrolet | K2500 | Silverado |
| 1994-1995 | Chevrolet | K2500 | WT |
| 1992-1995 | Chevrolet | K2500 Suburban | Base |
| 1995 | Chevrolet | K2500 Suburban | LS |
| 1995 | Chevrolet | K2500 Suburban | LT |
| 1992-1994 | Chevrolet | K2500 Suburban | Silverado |
| 1980-1981 | Chevrolet | K30 | Cheyenne |
| 1981-1986 | Chevrolet | K30 | Custom |
| 1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1980-1986 | Chevrolet | K30 | Scottsdale |
| 1980-1986 | Chevrolet | K30 | Silverado |
| 1994-1995 | Chevrolet | K3500 | Base |
| 1988-1995 | Chevrolet | K3500 | Cheyenne |
| 1988-1992 | Chevrolet | K3500 | Scottsdale |
| 1988-1995 | Chevrolet | K3500 | Silverado |
| 1980 | Chevrolet | K5 Blazer | Cheyenne |
| 1981-1986 | Chevrolet | K5 Blazer | Custom |
| 1980 | Chevrolet | K5 Blazer | Custom Deluxe |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1984 | Chevrolet | K5 Blazer | Scottsdale |
| 1980-1986 | Chevrolet | K5 Blazer | Silverado |
| 1980-1981 | Chevrolet | Malibu | Base |
| 1980-1983 | Chevrolet | Malibu | Classic |
| 1980 | Chevrolet | Malibu | Classic Estate |
| 1980-1981 | Chevrolet | Malibu | Classic Landau |
| 1980 | Chevrolet | Malibu | Classic Sport |
| 1980 | Chevrolet | Malibu | Estate |
| 1980 | Chevrolet | Malibu | Sport |
| 1981-1988 | Chevrolet | Monte Carlo | Base |
| 1983 | Chevrolet | Monte Carlo | CL |
| 1980-1981 | Chevrolet | Monte Carlo | Landau |
| 1986-1988 | Chevrolet | Monte Carlo | LS |
| 1980 | Chevrolet | Monte Carlo | Sport |
| 1983-1988 | Chevrolet | Monte Carlo | SS |
| 1980-1989 | Chevrolet | P20 | Base |
| 1980-1985,1987-1989 | Chevrolet | P20 | Step-Van |
| 1980-1996 | Chevrolet | P30 | Base |
| 1980-1985,1987-1990 | Chevrolet | P30 | Step-Van |
| 1987 | Chevrolet | R10 | Custom Deluxe |
| 1987 | Chevrolet | R10 | Scottsdale |
Product specifications.
- Brand
- COMP Cams
- Product category
- Camshafts
- SKU / part number
- CCA12-234-2
- Availability
- In stock
