Camburg 4130 TT Bolt-on Spindle Snout Block
$300.00
Looking to build your own spindles/uprights using a bolt-on spindle snout? Our TT spindle snout block is CNC machined in-house from aircraft quality 4130 chromoly that’s 5/8? thick. It’s 5? x 7.25? and uses the industry standard Dana 44 bolt pattern that...
Financing options may be available at checkout, subject to approval.
Free shippingQualifying U.S. orders
Product supportReal specialist help
Genuine partsManufacturer backed
Available from supplier
Special-order item. Supplier availability and lead time are confirmed after your order.
Vehicle compatibilitySelect your vehicle
Choose your vehicle to check available compatibility data for this part.
Product information.
About this product

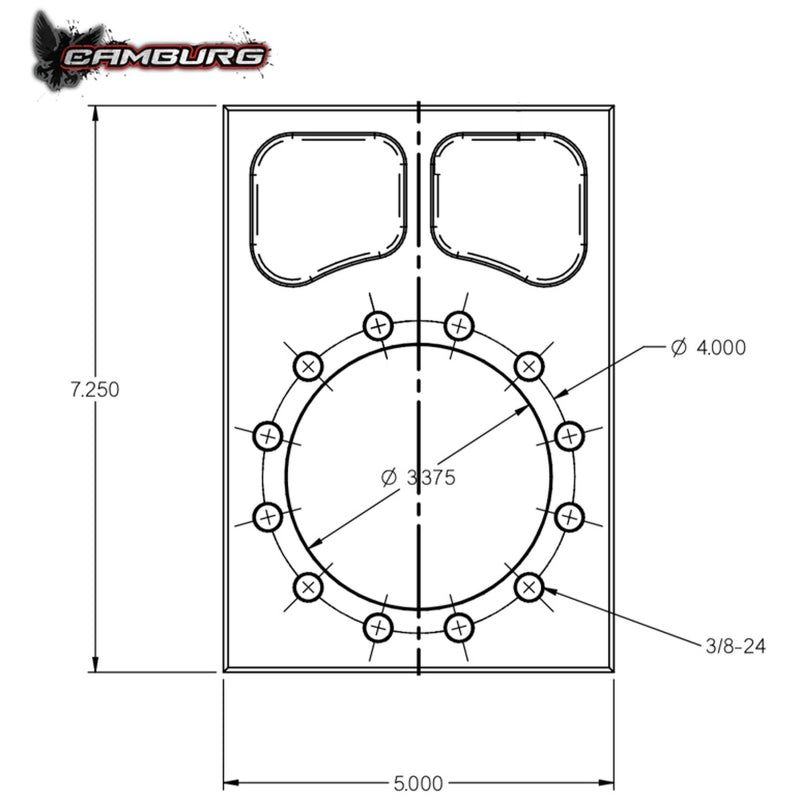

Looking to build your own spindles/uprights using a bolt-on spindle snout? Our TT spindle snout block is CNC machined in-house from aircraft quality 4130 chromoly that’s 5/8? thick. It’s 5? x 7.25? and uses the industry standard Dana 44 bolt pattern that we have doubled up (12 on 4?). The bolt holes are 3/8-24 and we recommend using mil-spec/NAS MS21250 series 12pt bolts to attach the spindle snout with. IMPORTANT: The spindle bore is machined undersized and will need to be final machined to 3.375” for a slight press fit after welding and/or heat-treatment. These are thicker and taller than our standard square block. We’ve also pocketed these to reduce weight without compromising strength. We machine all sides and the top & bottom surfaces, so everything is parallel and on the same plane. Nothing is laser or waterjet cut like cheaper versions. We use these on all our Camburg built KINETIK race trucks.
Product specifications.
- Brand
- Camburg
- Product category
- Flanges
- SKU / part number
- CMBCAM-010061
- Availability
- In stock
