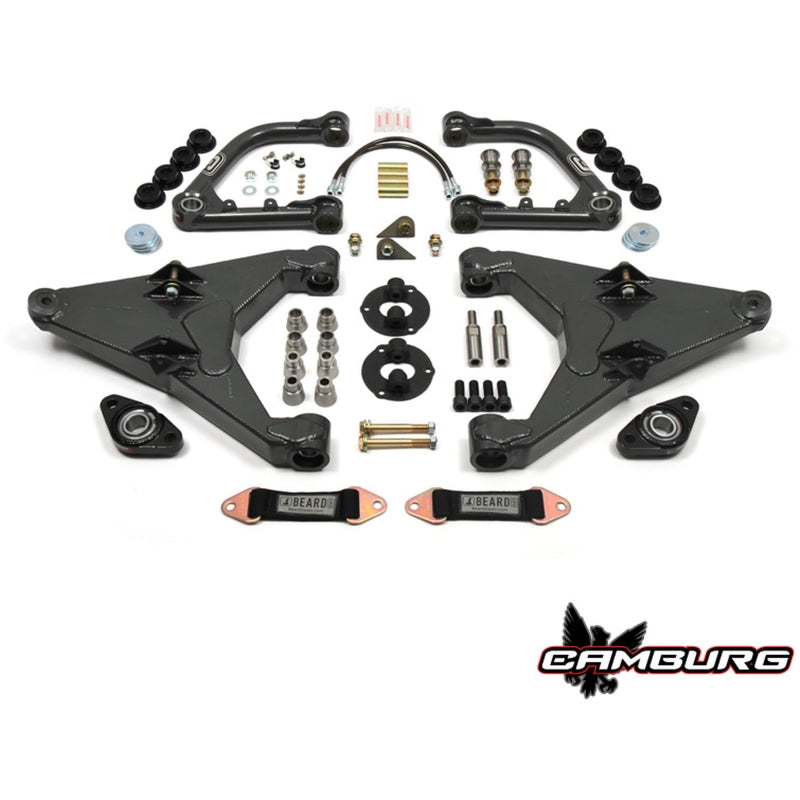

Camburg 10-23 Toyota 4-Runner / 10-14 Toyota FJ Race Series L/T Kit (HEIM UCA)

The Camburg Long Travel kit features high-performance A-Arm components. The lower arm includes uni-balls in the lower frame pivots and a uni-ball lower ball joint replacement. The upper arm pivots on urethane bushings with zerk fitting and 1.250" race uni-balls. The kit also includes heat-treated stainless steel adapters to connect the uni-ball to the spindle. The system utilizes Camburg SPEC 8" travel 2.5" reservoir coilovers by FOX or King, allowing for up to 15" travel on a 2×4 and 14" on a 4×4. The system can be upgraded with a weld-on bypass shock mount and a custom FOX or King 2.5" 3 tube bypass shock. This kit is designed for trail running, desert racing, or off-road exploration. It is recommended to have it installed by a reputable off-road shop familiar with these types of products. Fiberglass front fenders need to be installed with this suspension system. RWD models can run a coilover, bypass shock, and air bump stop, while 4WD models can run a coilover and air bump stop or coilover and bypass shock. This kit fits non-KDSS equipped models only. Shock specs include a 2.5 x 8" remote coilover, 16" x 500-600 lb coils, 23.9" extended length, 16" collapsed length, tapered/raised lower spring seat, 2" longer lower rod end, 1.25" width shock spacers, and a 90-degree res. fitting on the shock.

This Part Fits:

Year	Make	Model	Submodel
2023	Toyota	4Runner	40th Anniversary Edition
2010-2024	Toyota	4Runner	Limited
2020-2021	Toyota	4Runner	Nightshade
2010-2024	Toyota	4Runner	SR5
2018-2024	Toyota	4Runner	SR5 Premium
2010-2016,2021-2022	Toyota	4Runner	Trail
2017-2024	Toyota	4Runner	TRD Off-Road
2018-2024	Toyota	4Runner	TRD Off-Road Premium
2015-2024	Toyota	4Runner	TRD Pro
2022-2024	Toyota	4Runner	TRD Sport
2020-2021	Toyota	4Runner	Venture
2010-2014	Toyota	FJ Cruiser	Base
