Aeromotive

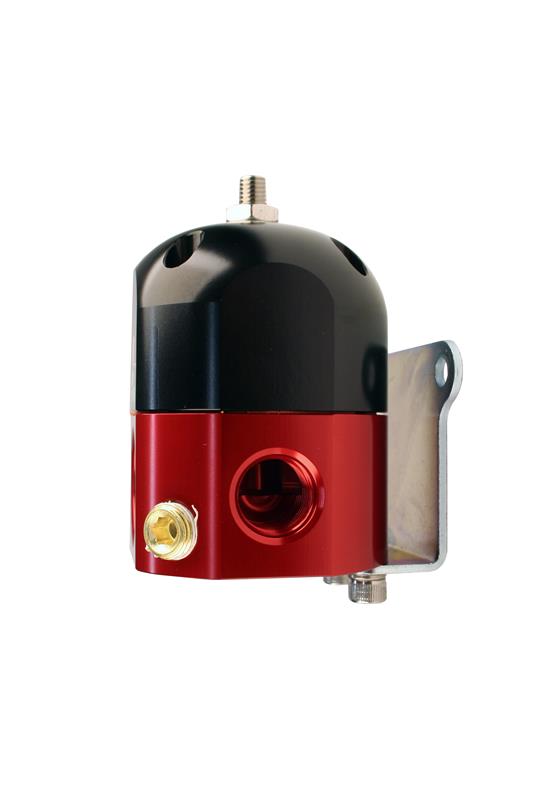

Aeromotive A1000 Carbureted Bypass Regulator - 2-Port
$254.71
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10...
Financing options may be available at checkout, subject to approval.
Free shippingQualifying U.S. orders
Product supportReal specialist help
Genuine partsManufacturer backed
Available from supplier
Special-order item. Supplier availability and lead time are confirmed after your order.
Vehicle compatibilitySelect your vehicle
Choose your vehicle to check available compatibility data for this part.
Product information.
About this product
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
Product specifications.
- Brand
- Aeromotive
- Product category
- Fuel Pressure Regulators
- SKU / part number
- AER13204
- Availability
- In stock
